BDSG-83-125-24V-3000-R3

Unit Price:
$295.00
Quantity Discount
  • Buy 10 for $220.60 each and save 25%
  • Buy 25 for $209.89 each and save 29%
  • Buy 50 for $186.83 each and save 37%
  • Buy 100 for $178.56 each and save 39%
Inventory:
5
In stock
More Information
Gear Ratio 3
Rated Torque (oz-in) 111
Peak Torque (oz-in) 625
No Load Speed (rpm) 1000
Rated Speed (RPM) 833
Nominal Voltage (V) 24
Rated Current (A) 4.6
Output Power (W) 77
Body Diameter (mm) 83
Total Length (mm) 170
Gearbox Length "L" (mm) 45
Shaft Diameter (mm) 12
Weight (lbs) 5.78
Interested in large quantity discount?

Product Information

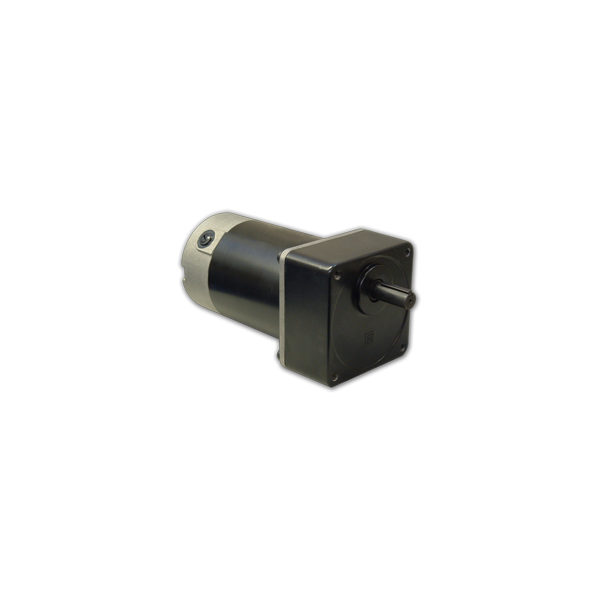

The BDSG-83-125 Series was designed for high volume OEM applications with low cost being the primary objective. Available in gear ratios from 3 to 100, the BDSG-83-125 Series gearmotor offers continuous torque of up to 2750 oz-in. These motors are fully reversible. The BDSG-83-125 Series gearmotors are a cost effective solution to manage motion control in many rotary applications including medical, semiconductor, pumps, robotics, CNC, or any other situation when a low cost Brush DC Spur gearmotor is needed.

Note: BDSG-83-125 are LTSOH (Limited to Stock on Hand).

  • DC Brush Spur GearMotor
  • Designed for High-Volume Applications
  • Up to 2750 oz-in of Continuous Torque
  • 83mm Motor Diameter
  • Custom Versions are Available
  • CE Certified and RoHS Compliant

3D PDF

.STEP File (.RAR File)

Spec Sheet (PDF)

CE Certified

RoHS Compliant
