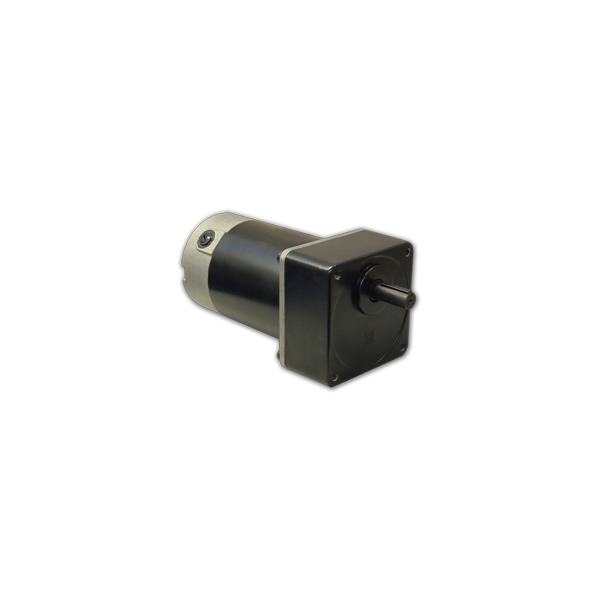

BDSG-83-125-24V-3000-R50
| Gear Ratio | 50 |
|---|---|
| Rated Torque (oz-in) | 1514 |
| Peak Torque (oz-in) | 3472 |
| No Load Speed (rpm) | 60 |
| Rated Speed (RPM) | 50 |
| Nominal Voltage (V) | 24 |
| Rated Current (A) | 4.6 |
| Output Power (W) | 77 |
| Body Diameter (mm) | 83 |
| Total Length (mm) | 185 |
| Gearbox Length "L" (mm) | 60 |
| Shaft Diameter (mm) | 12 |
| Weight (lbs) | 6.1 |
Interested in large quantity discount?
Product Information
The BDSG-83-125 Series was designed for high volume OEM applications with low cost being the primary objective. Available in gear ratios from 3 to 100, the BDSG-83-125 Series gearmotor offers continuous torque of up to 2750 oz-in. These motors are fully reversible. The BDSG-83-125 Series gearmotors are a cost effective solution to manage motion control in many rotary applications including medical, semiconductor, pumps, robotics, CNC, or any other situation when a low cost Brush DC Spur gearmotor is needed.
Note: BDSG-83-125 are LTSOH (Limited to Stock on Hand).
- DC Brush Spur GearMotor
- Designed for High-Volume Applications
- Up to 2750 oz-in of Continuous Torque
- 83mm Motor Diameter
- Custom Versions are Available
- CE Certified and RoHS Compliant
