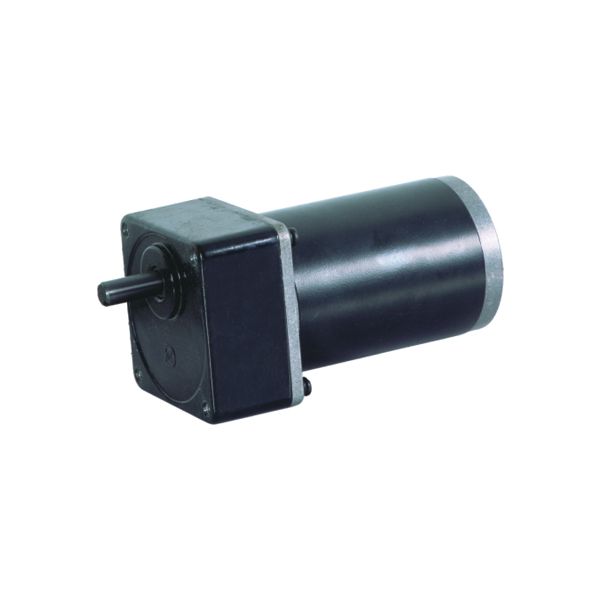

BDSG-80-100-24V-3000-R3
| Gear Ratio | 3 |
|---|---|
| Rated Torque (oz-in) | 114.7 |
| Peak Torque (oz-in) | 708.1 |
| No Load Speed (rpm) | 1000 |
| Rated Speed (RPM) | 800 |
| Nominal Voltage (V) | 24 |
| Output Power (W) | 80 |
| Body Diameter (mm) | 80 |
| Total Length (mm) | 108 |
| Gearbox Length "L" (mm) | 140 |
| Shaft Diameter (mm) | 10 |
| Weight (lbs) | 4.72 |
| Lead Time | Typ 110 Days |
Interested in large quantity discount?
Product Information
The BDSG-80-100 Series was designed for high-volume OEM applications with low cost being the primary objective. Available in gear ratios from 3 to 75, the BDSG-80-100 Series gearmotor offers continuous torque of up to 1416 oz-in. These motors are fully reversible. The BDSG-80-100 Series gearmotors are a cost-effective solution to manage motion control in many rotary applications including medical, semiconductor, pumps, robotics, CNC or any other situation when a low cost Brush DC Spur gearmotor is needed.
- DC Brush Spur Gearmotor
- Designed for High Volume Applications
- Up to 1416 oz-in of Continuous Torque
- 80mm Motor Diameter
- Custom Versions are available
Spec Sheet (PDF)
