BDWG258NC-236-24-40-GL-C5-W2

BDWG258NC-236-24-40-GL-C5-W2

BDWG259NP-275-24-22-HL-C5-W2

BDWG259NP-275-24-22-HL-C5-W2

BDWG259NP-275-12-22-HL-C5-W2

Unit Price:
$485.00
Quantity Discount
  • Buy 10 for $468.43 each and save 3%
  • Buy 25 for $453.79 each and save 6%
  • Buy 50 for $418.04 each and save 14%
  • Buy 100 for $405.75 each and save 16%
Inventory:
0
Out of Stock
More Information
Rated Voltage (V) 12
Rated Current (A) 12
Max Current (A) 60
Rated Speed (RPM) 22
Rated Torque (oz-in) 2832
Max Output Torque (oz-in) 18.400
Weight (lbs) 13
Interested in large quantity discount?

Product Information

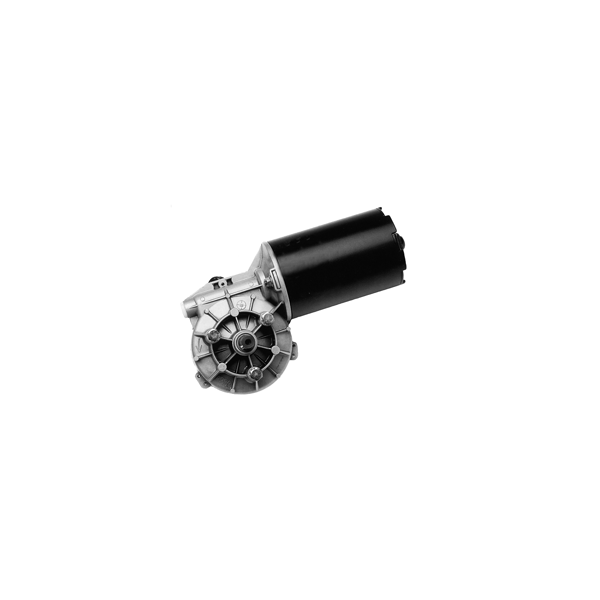

The BDWG259NP-275 Series is designed for high volume OEM applications with low cost being the primary objective. These reliable low cost Brush DC Worm Gearmotors come in a variety of power levels and sizes, and will be sure to fit your needs. The motors are fully reversible. The BDWG259 Series is a cost effective solution to manage motion control in many rotary applications including medical, semiconductor, pumps, robotics, hobby, CNC, and many other applications where a low cost Brush DC Worm Gearmotor is needed.

  • DC Brush Worm Gearmotor
  • Designed for High-Volume Applications
  • Up to 2832 oz-in of Continuous Torque
  • 95mm Motor Body Diameter
  • CE Certified and RoHS Compliant

Note: *Mating Connector: Plug AMP 180907-0 (2x) Female Terminal 6.35

.STEP File (.RAR File)

Spec Sheet (PDF)
