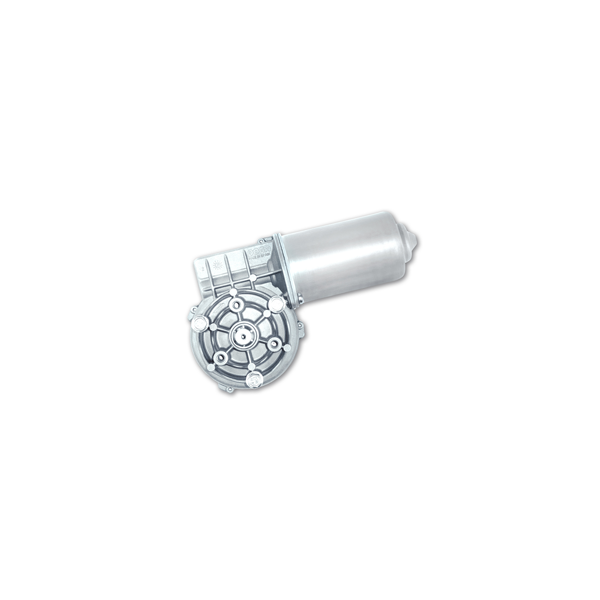

BDWG319HNP-207-24-30-FL-C9-W5
| Rated Voltage (V) | 24 |
|---|---|
| Rated Current (A) | 3 |
| Max Current (A) | 15 |
| Rated Speed (RPM) | 30 |
| Rated Torque (oz-in) | 1274.5 |
| Max Output Torque (oz-in) | 7.072 |
| Weight (lbs) | 3.74 |
Interested in large quantity discount?
Product Information
The BDWG319H Series is designed for high-volume OEM applications with low cost being the primary objective. These reliable low cost Brush DC Worm Gearmotors come in a variety of power levels and sizes, and will be sure to fit your needs. The motors are fully reversible. The BDWG319H Series is a cost-effective solution to manage motion control in many rotary applications including medical, semiconductor, pumps, robotics, hobby, CNC, and many other applications where a low cost Brush DC Worm Gearmotor is needed.
- DC Brush Worm Gearmotor
- Designed for High-Volume Applications
- Up to 1274.5 oz-in of Continuous Torque
- 60mm Motor Body Diameter
- 207mm Overall Length
- CE Certified and RoHS Compliant
- Mounting Screws Included
.png)
.png)
.png)
.png)
.png)
Spec Sheet (PDF)
