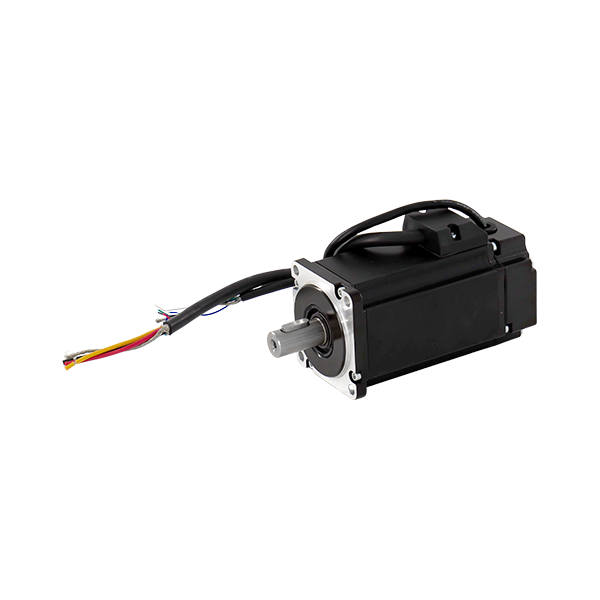

Anaheim Automation BLF60D-040 400 Watt Dual-Shaft BLDC Motor (side angle)

BLF60D-040-170V-3000

Anaheim Automation BLF60D-040 400 Watt Dual-Shaft BLDC Motor (side angle)

BLF60D-040-48V-3000

BLF60D-040-24V-3000

1pc Price:
$298.00
Quantity Discount
  • Buy 10 for $296.32 each and save 1%
  • Buy 25 for $217.05 each and save 27%
  • Buy 100 for $167.25 each and save 44%
Inventory:
19
More Information
Rated Voltage (V) 24
Rated Power (Watts) 400
Rated Torque (oz-in) 180
Rated Speed (RPM) 3000
Torque Constant (oz-in/A) 7.6
Back EMF Voltage (V/kRPM) 4
Line-to-Line Resistance (ohm) 0.1
Line-to-Line Inductance (mH) 0.2
Rotor Inertia (oz-in-sec2) 0.00609
"L" Motor Length (mm) 115
Weight (lbs) 3.08
Interested in large quantity discount?

Product Information

The powerful BLF60 Series are square-bodied 60mm frame size Brushless DC Motors. These Square-bodied motors include an aluminum square-mounting flange to allow for easy installation, Class F insulation for higher temperature operation, and rated  torque up to 180 oz-in. The BLF60 Series is available in two different power levels, three voltages, have a rated speed of 3,000 RPM and utilizes Hall Sensor Feedback.

  • 60mm Frame Size BLDC Motors
  • Long Life and Highly Reliable
  • Cost-Effective Replacement for Brush DC Motors
  • Hall Sensor Feedback
  • Available in Two Different Stack Lengths
  • Can be Customized for
    • Maximum Speed
    • Winding Current
    • Shaft Options
    • Cables and Connectors

3D PDF (.pdf)

.STEP File (.zip)

Spec Sheet (.pdf)
