BLF60S-020-48V-14400
| Rated Voltage (V) | 48 |
|---|---|
| Rated Power (Watts) | 200 |
| Rated Torque (oz-in) | 19.8 |
| Rated Speed (RPM) | 14400 |
| Torque Constant (oz-in/A) | 15.3 |
| Back EMF Voltage (V/kRPM) | 2.1 |
| Line-to-Line Resistance (ohm) | 0.06 |
| Line-to-Line Inductance (mH) | 0.13 |
| Rotor Inertia (oz-in-sec2) | 0.00297 |
| "L" Motor Length (mm) | 100 |
| Weight (lbs) | 2.64 |
Interested in large quantity discount?
Product Information

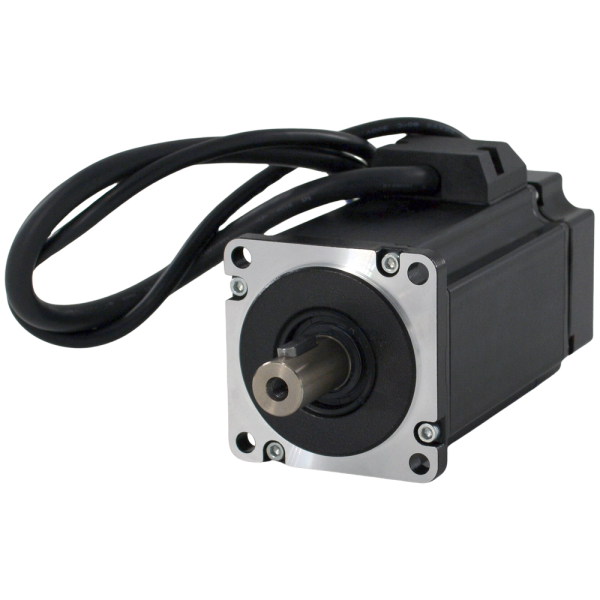

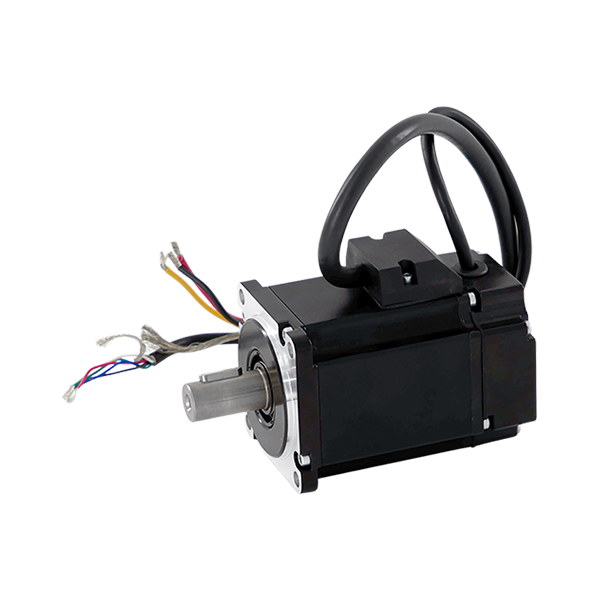

The powerful BLF60 Series are square-bodied 60mm frame size Brushless DC Motors. These Square-bodied motors include an aluminum square-mounting flange to allow for easy installation, Class F insulation for higher temperature operation, and rated torque up to 180 oz-in. The BLF60 Series is available in two different power levels, three voltages, have a rated speed of 3,000 RPM and utilizes Hall Sensor Feedback.
- 60mm Frame Size BLDC Motors
- Long Life and Highly Reliable
- Cost-Effective Replacement for Brush DC Motors
- Hall Sensor Feedback
- Available in Two Different Stack Lengths
- Can be Customized for
- Maximum Speed
- Winding Current
- Shaft Options
- Cables and Connectors
