BLF60S-040-48V-3000

Unit Price:
$275.00
Quantity Discount
  • Buy 10 for $257.90 each and save 6%
  • Buy 25 for $249.38 each and save 9%
  • Buy 50 for $245.66 each and save 11%
  • Buy 100 for $186.51 each and save 32%
Inventory:
0
Out of Stock
More Information
Rated Voltage (V) 48
Rated Power (Watts) 400
Rated Torque (oz-in) 180
Rated Speed (RPM) 3000
Torque Constant (oz-in/A) 15.6
Back EMF Voltage (V/kRPM) 8.1
Line-to-Line Resistance (ohm) 0.37
Line-to-Line Inductance (mH) 0.9
Rotor Inertia (oz-in-sec2) 0.00609
"L" Motor Length (mm) 115
Weight (lbs) 3.08
Interested in large quantity discount?

Product Information

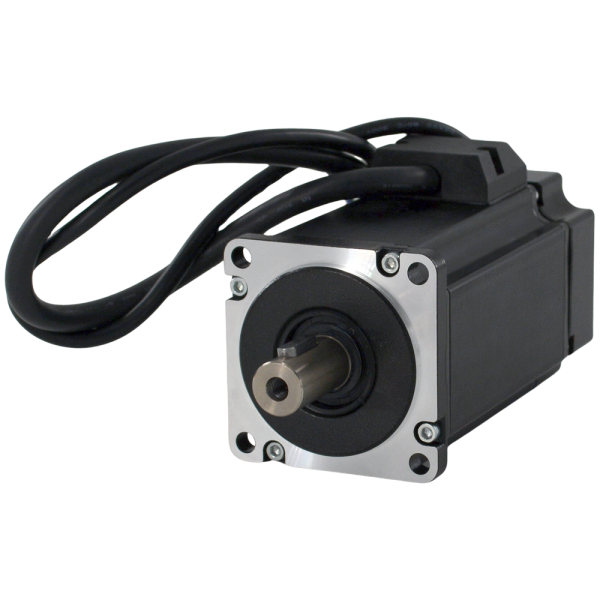

The powerful BLF60 Series are square-bodied 60mm frame size Brushless DC Motors. These Square-bodied motors include an aluminum square-mounting flange to allow for easy installation, Class F insulation for higher temperature operation, and rated  torque up to 180 oz-in. The BLF60 Series is available in two different power levels, three voltages, have a rated speed of 3,000 RPM and utilizes Hall Sensor Feedback.

  • 60mm Frame Size BLDC Motors
  • Long Life and Highly Reliable
  • Cost-Effective Replacement for Brush DC Motors
  • Hall Sensor Feedback
  • Available in Two Different Stack Lengths
  • Can be Customized for
    • Maximum Speed
    • Winding Current
    • Shaft Options
    • Cables and Connectors

3D PDF (.pdf)

.STEP File (.zip)

Spec Sheet (.pdf)
