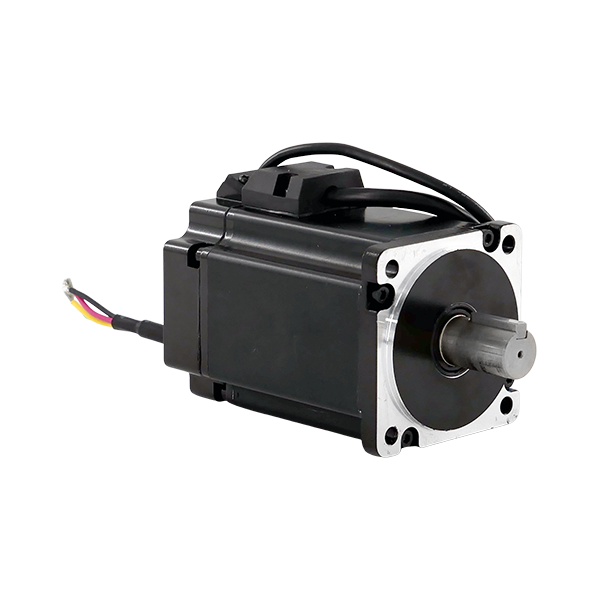

Anaheim Automation BLF80D-065 650 Watt Dual-Shaft BLDC Motor (front angle)

BLF80D-065-48V-3000

Anaheim Automation BLF80S-080 800 Watt Single-Shaft BLDC Motor (front angle)

BLF80S-080-48V-3000

BLF80D-065-170V-3000

1pc Price:
$288.00
Quantity Discount
  • Buy 10 for $275.54 each and save 4%
  • Buy 25 for $262.83 each and save 9%
  • Buy 50 for $171.58 each and save 40%
  • Buy 100 for $140.88 each and save 51%
Inventory:
25
More Information
Rated Voltage (V) 170
Rated Power (Watts) 650
Rated Torque (oz-in) 293
Rated Speed (RPM) 3000
Torque Constant (oz-in/A) 53.8
Back EMF Voltage (V/kRPM) 28.6
Line-to-Line Resistance (ohm) 1.34
Line-to-Line Inductance (mH) 6.85
Rotor Inertia (oz-in-sec2) 0.016
"L" Motor Length (mm) 119
Weight (lbs) 6.17
Interested in large quantity discount?

Product Information

The powerful BLF80 Series are square-bodied 80mm frame size Brushless DC Motors. These Square-bodied motors include an aluminum square-mounting flange to allow for easy installation, Class F insulation for higher temperature operation, and rated torque up to 293 oz-in.

  • 80mm Frame Size BLDC Motors
  • Long Life and Highly Reliable
  • Cost-Effective Replacement for Brush DC Motors
  • Hall Sensor Feedback
  • Available in Two Different Stack Lengths
  • CE Certified and RoHS Compliant

.STEP File (.zip)

Spec Sheet (.pdf)
