BLF80D-100-170V-3000
| Rated Voltage (V) | 170 |
|---|---|
| Rated Power (Watts) | 1000 |
| Rated Torque (oz-in) | 453 |
| Rated Speed (RPM) | 3000 |
| Torque Constant (oz-in/A) | 52.1 |
| Back EMF Voltage (V/kRPM) | 27.2 |
| Line-to-Line Resistance (ohm) | 0.625 |
| Line-to-Line Inductance (mH) | 3.52 |
| Rotor Inertia (oz-in-sec2) | 0.027 |
| "L" Motor Length (mm) | 149 |
| Weight (lbs) | 7.72 |
Interested in large quantity discount?
Product Information

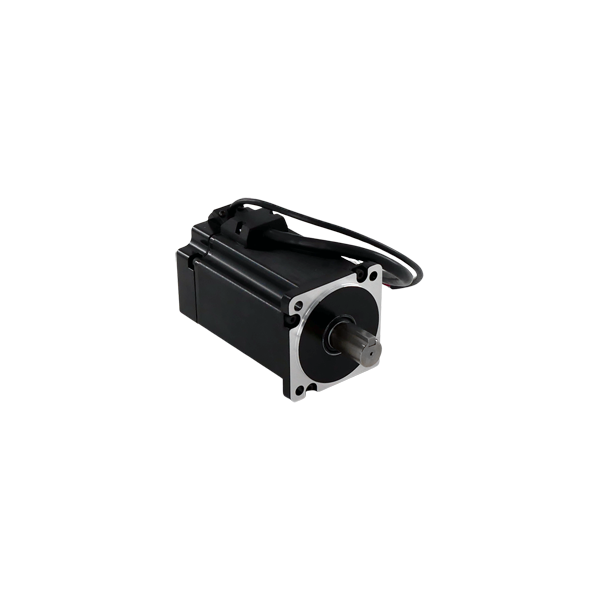

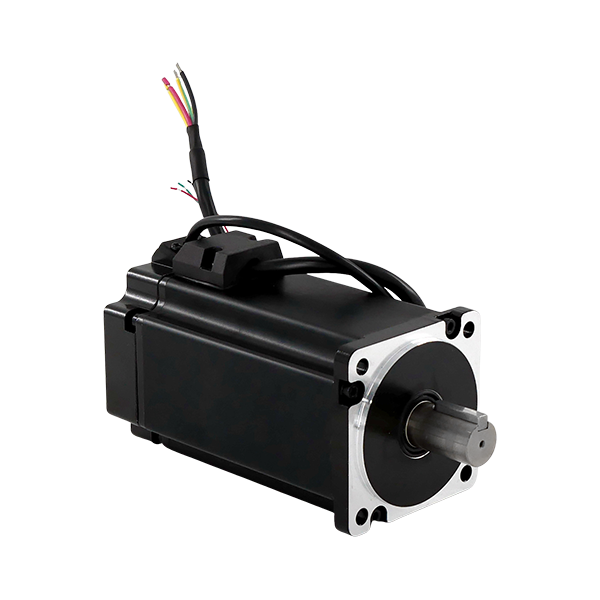

The powerful BLF80 Series are square-bodied 80mm frame size Brushless DC Motors. These Square-bodied motors include an aluminum square-mounting flange to allow for easy installation, Class F insulation for higher temperature operation, and rated torque up to 453 oz-in.
- 80mm Frame Size BLDC Motors
- Long Life and Highly Reliable
- Cost-Effective Replacement for Brush DC Motors
- Hall Sensor Feedback
- Available in Two Different Stack Lengths
- CE Certified and RoHS Compliant
