BLF80S-065-170V-3000
| Rated Voltage (V) | 48 |
|---|---|
| Rated Power (Watts) | 650 |
| Rated Torque (oz-in) | 293 |
| Rated Speed (RPM) | 3000 |
| Torque Constant (oz-in/A) | 53.8 |
| Back EMF Voltage (V/kRPM) | 28.6 |
| Line-to-Line Resistance (ohm) | 1.34 |
| Line-to-Line Inductance (mH) | 6.85 |
| Rotor Inertia (oz-in-sec2) | 0.016 |
| "L" Motor Length (mm) | 119 |
| Weight (lbs) | 5.95 |
Interested in large quantity discount?
Product Information

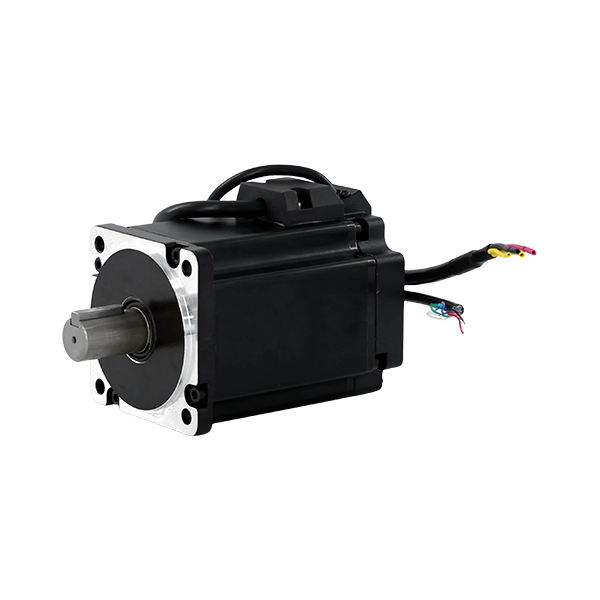

The powerful BLF80 Series are square-bodied 80mm frame size Brushless DC Motors. These Square-bodied motors include an aluminum square-mounting flange to allow for easy installation, Class F insulation for higher temperature operation, and rated torque up to 293 oz-in.
- 80mm Frame Size BLDC Motors
- Long Life and Highly Reliable
- Cost-Effective Replacement for Brush DC Motors
- Hall Sensor Feedback
- Available in Two Different Stack Lengths
- CE Certified and RoHS Compliant
