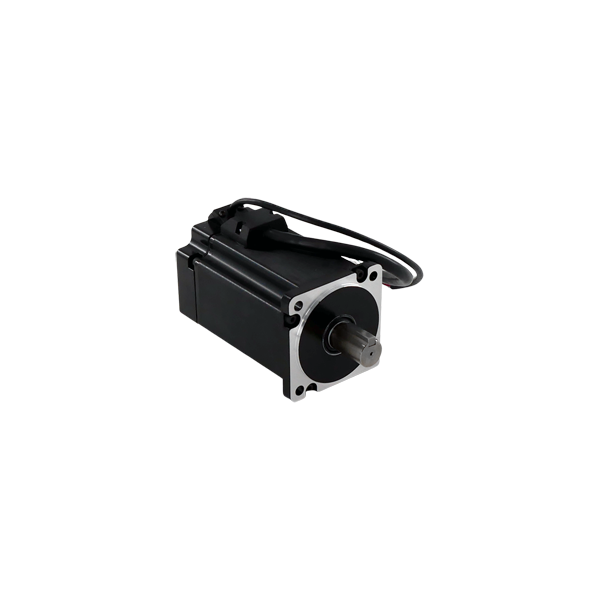

Anaheim Automation BLF80D-080 800 Watt Dual-Shaft BLDC Motor (side angle)

BLF80D-080-48V-3000

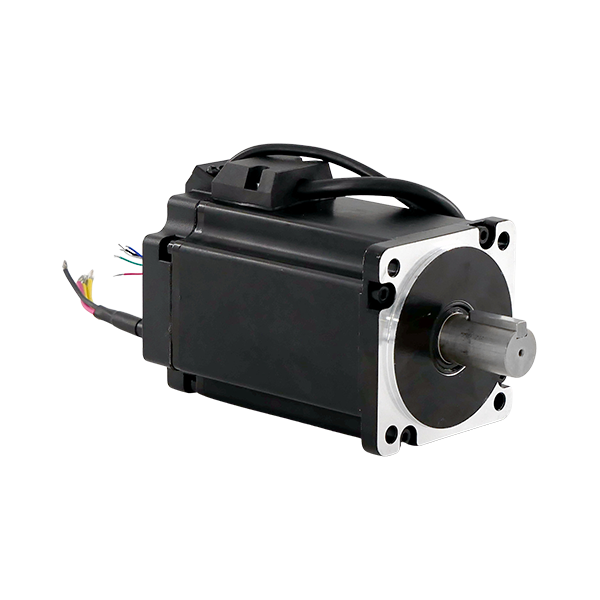

Anaheim Automation BLF80D-080 800 Watt Dual-Shaft BLDC Motor (front angle)

BLF80D-080-170V-3000

BLF80S-080-170V-3000

1pc Price:
$418.00
Quantity Discount
  • Buy 10 for $401.39 each and save 4%
  • Buy 25 for $396.56 each and save 5%
  • Buy 50 for $252.31 each and save 40%
  • Buy 100 for $203.78 each and save 51%
Inventory:
5
More Information
Rated Voltage (V) 170
Rated Power (Watts) 800
Rated Torque (oz-in) 378
Rated Speed (RPM) 3000
Torque Constant (oz-in/A) 54.1
Back EMF Voltage (V/kRPM) 28.3
Line-to-Line Resistance (ohm) 1
Line-to-Line Inductance (mH) 5
Rotor Inertia (oz-in-sec2) 0.024
"L" Motor Length (mm) 130
Weight (lbs) 7.05
Interested in large quantity discount?

Product Information

The powerful BLF80 Series are square-bodied 80mm frame size Brushless DC Motors. These Square-bodied motors include an aluminum square-mounting flange to allow for easy installation, Class F insulation for higher temperature operation, and rated torque up to 378 oz-in.

  • 80mm Frame Size BLDC Motors
  • Long Life and Highly Reliable
  • Cost-Effective Replacement for Brush DC Motors
  • Hall Sensor Feedback
  • Available in Two Different Stack Lengths
  • CE Certified and RoHS Compliant

.STEP File (.zip)

Spec Sheet (.pdf)
