BLWR093S-24V-3500

BLWR093S-24V-3500

BLWR110S-15V-8000

BLWR110S-15V-8000

BLWR093D-24V-3500

1pc Price:
$118.00
Quantity Discount
  • Buy 10 for $104.81 each and save 11%
  • Buy 25 for $76.35 each and save 35%
  • Buy 50 for $74.10 each and save 37%
  • Buy 100 for $40.43 each and save 66%
Inventory:
8
More Information
Rated Voltage (V) 24
Rated Power (Watts) 8
Rated Torque (oz-in) 2.8
Rated Speed (RPM) 3800
Torque Constant (oz-in/A) 5.03
Back EMF Voltage (V/kRPM) 2.65
Line-to-Line Resistance (ohm) 11.6
Line-to-Line Inductance (mH) 4.3
Rotor Inertia (oz-in-sec2) 0.0000187
"L" Motor Length (mm) 72
Weight (lbs) 0.28
Interested in large quantity discount?

Product Information

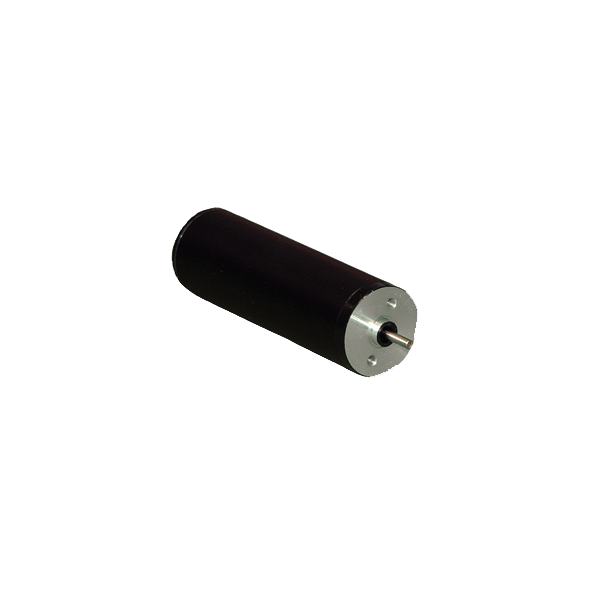

The BLWR09 Series Brushless DC Motors come in a compact package with high power density. These motors are cost effective solutions to many velocity control applications. The star wound motor comes in a standard 8-lead configuration. We can also customize the winding to perfectly match your voltage, current, and maximum operating speed. Special shaft modifications, cables and connectors are also available upon request.

  • 22mm Round Body
  • 3-Phase, 8 Pole Motor
  • Ball Bearing Design
  • Strong NFeB Magnets
  • Long Life - 20,000 Hour Operation
  • Cost Effective Replacement for Brush DC Motors
  • Can be Customized for
    • Operating Voltage & Rated Speed
    • Cables and Connectors
  • RoHS Compliant

3D PDF

.STEP File (.RAR File)

Spec Sheet (PDF)

CE Compliant

RoHS Compliant
