BLWR171S-12V-4000

BLWR171S-12V-4000

BLWR172S-12V-4200

BLWR172S-12V-4200

BLWR171S-12V-5000

1pc Price:
$106.00
Quantity Discount
  • Buy 10 for $102.12 each and save 4%
  • Buy 25 for $82.39 each and save 22%
  • Buy 100 for $46.27 each and save 56%
Inventory:
10
More Information
Rated Voltage (V) 12
Rated Power (Watts) 10
Rated Torque (oz-in) 2.8
Rated Speed (RPM) 5000
Torque Constant (oz-in/A) 2.28
Back EMF Voltage (V/kRPM) 1.21
Line-to-Line Resistance (ohm) 1.08
Line-to-Line Inductance (mH) 0.84
Rotor Inertia (oz-in-sec2) 0.0002210
"L" Motor Length (mm) 30
Weight (lbs) 0.55
Interested in large quantity discount?

Product Information

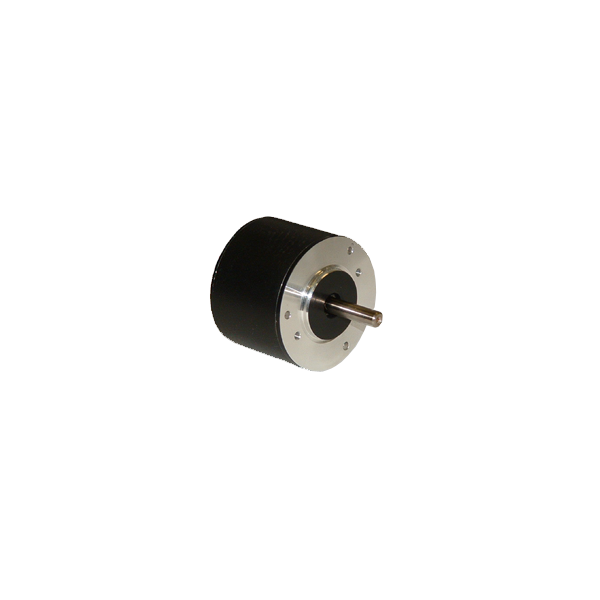

The BLWR17 Series Brushless DC Motors come in a compact package with high power density. These motors are cost effective solutions to many velocity control applications. The star wound motor comes in a standard 8-lead configuration. We can also customize the winding to perfectly match your voltage, current, and maximum operating speed. Special shaft modifications, cables and connectors are also available upon request.

  • 42mm Round Body
  • Compact Size and Power Density
  • Long Life and Highly Reliable
  • Cost Effective Replacement for Brush DC Motors
  • Can be Customized for
    • Maximum Speed
    • Winding Current
    • Shaft Options
    • Cables and Connectors

3D PDF

.STEP File (.RAR File)

Spec Sheet (PDF)

CE Compliant

RoHS Compliant
