BLWR172S-24V-4200
| Rated Voltage (V) | 24 |
|---|---|
| Rated Power (Watts) | 25 |
| Rated Torque (oz-in) | 7.9 |
| Rated Speed (RPM) | 4200 |
| Torque Constant (oz-in/A) | 5.45 |
| Back EMF Voltage (V/kRPM) | 3.84 |
| Line-to-Line Resistance (ohm) | 1.6 |
| Line-to-Line Inductance (mH) | 1.94 |
| Rotor Inertia (oz-in-sec2) | 0.0004670 |
| "L" Motor Length (mm) | 60 |
| Weight (lbs) | 0.88 |
Interested in large quantity discount?
Product Information

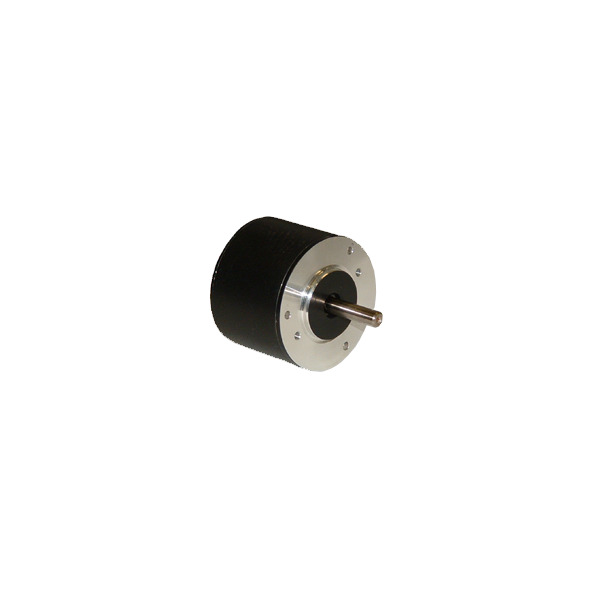

The BLWR17 Series Brushless DC Motors come in a compact package with high power density. These motors are cost effective solutions to many velocity control applications. The star wound motor comes in a standard 8-lead configuration. We can also customize the winding to perfectly match your voltage, current, and maximum operating speed. Special shaft modifications, cables and connectors are also available upon request.
- 42mm Round Body
- Compact Size and Power Density
- Long Life and Highly Reliable
- Cost Effective Replacement for Brush DC Motors
- Can be Customized for
- Maximum Speed
- Winding Current
- Shaft Options
- Cables and Connectors
.png)
.png)
.png)
.png)
.png)
