BLWRPG093S-12V-3500
| Rated Power (W) | 7.2 |
|---|---|
| Rated Voltage (V) | 12 |
| Rated Current (A) | 1.12 |
| Rated Motor Speed (rpm) | 3500 |
| Rated Torque (oz-in) | 2.8 |
| Peak Torque (oz-in) | 8.5 |
| Line-to-Line Resistance (ohms) | 2.5 |
| Line To Line Inductance (mH) | 1 |
| Motor Back EMF Voltage (V/kRPM) | 2 |
| Torque Constant (oz-in/A) | 2.5 |
| Rotor Inertia (oz-in-sec2) | 18.7 x 10 -6 |
| Motor Weight (lbs) | 0.28 |
| L2 Motor Length (mm) | 68 |
Interested in large quantity discount?
Product Information

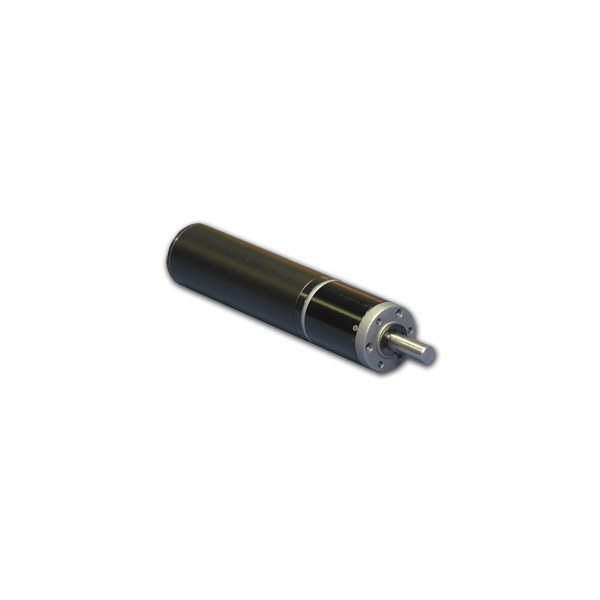

The BLWRPG09 Series is a cost effective Brushless DC gearmotor. These motors are designed keeping the OEM in mind, using state of the art design parameters and low cost manufacturing. This allows Anaheim Automation to offer these quality motors at exceptional prices. This gearmotor includes a planetary gearbox and a brushless DC motor in a compact fully integrated package. The DC gearmotor is a perfect solution for applications requiring high torque or speeds under 500 RPM. The star wound motor comes with integrated hall sensors for closed loop control for velocity applications. If the off-the-shelf gearmotors do no match your application, a motor can be wound or a gearbox can be selected to meet your specific requirements. Anaheim Automation specializes in providing both off the shelf and custom solutions to handle any demanding application.
- NEMA 09 Size
- Long Life - Over 3,000 Hour Operation
- Cost Effective Replacement For Brush DC Motors
- Backlash Less than 3°
- Can be Customized for
- Operating Voltage
- Rated Speed
- Cables and Connectors
- CE Certified, and RoHS Compliant
| Output Shaft of Gearbox | |||||||
|---|---|---|---|---|---|---|---|
| Gear Ratio | Exact Gear Ratio | Peak Torque (oz-in) | Number of Gear Trains | "L1" (Length of Gearbox in mm) | Gearbox Weight (lbs) | Rated Torque (oz-in) | Efficiency (%) |
| Gear RatioR3.7 | Exact Gear Ratio3.71 | Peak Torque (oz-in)41.6 | Number of Gear Trains1 | "L1" (Length of Gearbox in mm)24.4 | Gearbox Weight (lbs).08 | Rated Torque (oz-in)14 | Efficiency (%)90 |
| Gear RatioR5.2 | Exact Gear Ratio5.18 | Peak Torque (oz-in)41.6 | Number of Gear Trains1 | "L1" (Length of Gearbox in mm)24.4 | Gearbox Weight (lbs).08 | Rated Torque (oz-in)14 | Efficiency (%)90 |
| Gear RatioR14 | Exact Gear Ratio13.76 | Peak Torque (oz-in)83.2 | Number of Gear Trains2 | "L1" (Length of Gearbox in mm)34.5 | Gearbox Weight (lbs).10 | Rated Torque (oz-in)28 | Efficiency (%)81 |
| Gear RatioR19 | Exact Gear Ratio19.22 | Peak Torque (oz-in)83.2 | Number of Gear Trains2 | "L1" (Length of Gearbox in mm)34.5 | Gearbox Weight (lbs).10 | Rated Torque (oz-in)28 | Efficiency (%)81 |
| Gear RatioR27 | Exact Gear Ratio26.83 | Peak Torque (oz-in)83.2 | Number of Gear Trains2 | "L1" (Length of Gearbox in mm)34.5 | Gearbox Weight (lbs).10 | Rated Torque (oz-in)28 | Efficiency (%)81 |
| Gear RatioR51 | Exact Gear Ratio51.06 | Peak Torque (oz-in)208.2 | Number of Gear Trains3 | "L1" (Length of Gearbox in mm)41.5 | Gearbox Weight (lbs).12 | Rated Torque (oz-in)69 | Efficiency (%)73 |
| Gear RatioR71 | Exact Gear Ratio71.30 | Peak Torque (oz-in)208.2 | Number of Gear Trains3 | "L1" (Length of Gearbox in mm)41.5 | Gearbox Weight (lbs).12 | Rated Torque (oz-in)69 | Efficiency (%)73 |
| Gear RatioR100 | Exact Gear Ratio99.55 | Peak Torque (oz-in)208.2 | Number of Gear Trains3 | "L1" (Length of Gearbox in mm)41.5 | Gearbox Weight (lbs).12 | Rated Torque (oz-in)69 | Efficiency (%)73 |
| Gear RatioR139 | Exact Gear Ratio138.99 | Peak Torque (oz-in)208.2 | Number of Gear Trains3 | "L1" (Length of Gearbox in mm)41.5 | Gearbox Weight (lbs).12 | Rated Torque (oz-in)69 | Efficiency (%)73 |
| Gear RatioR189 | Exact Gear Ratio189.45 | Peak Torque (oz-in)416.3 | Number of Gear Trains4 | "L1" (Length of Gearbox in mm)49.8 | Gearbox Weight (lbs).14 | Rated Torque (oz-in)139 | Efficiency (%)66 |
| Gear RatioR264 | Exact Gear Ratio264.52 | Peak Torque (oz-in)416.3 | Number of Gear Trains4 | "L1" (Length of Gearbox in mm)49.8 | Gearbox Weight (lbs).14 | Rated Torque (oz-in)139 | Efficiency (%)66 |
| Gear RatioR369 | Exact Gear Ratio369.32 | Peak Torque (oz-in)416.3 | Number of Gear Trains4 | "L1" (Length of Gearbox in mm)49.8 | Gearbox Weight (lbs).14 | Rated Torque (oz-in)139 | Efficiency (%)66 |
| Gear RatioR516 | Exact Gear Ratio515.64 | Peak Torque (oz-in)416.3 | Number of Gear Trains4 | "L1" (Length of Gearbox in mm)49.8 | Gearbox Weight (lbs).14 | Rated Torque (oz-in)139 | Efficiency (%)66 |
| Gear RatioR720 | Exact Gear Ratio719.98 | Peak Torque (oz-in)416.3 | Number of Gear Trains4 | "L1" (Length of Gearbox in mm)49.8 | Gearbox Weight (lbs).14 | Rated Torque (oz-in)139 | Efficiency (%)66 |
| Output Shaft of Gearbox | |||||||
|---|---|---|---|---|---|---|---|
| Gear Ratio | Exact Gear Ratio | Peak Torque (oz-in) | Number of Gear Trains | "L1" (Length of Gearbox in mm) | Gearbox Weight (lbs) | Rated Torque (oz-in) | Efficiency (%) |
| Gear RatioR3.7 | Exact Gear Ratio3.71 | Peak Torque (oz-in)41.6 | Number of Gear Trains1 | "L1" (Length of Gearbox in mm)24.4 | Gearbox Weight (lbs).08 | Rated Torque (oz-in)14 | Efficiency (%)90 |
| Gear RatioR5.2 | Exact Gear Ratio5.18 | Peak Torque (oz-in)41.6 | Number of Gear Trains1 | "L1" (Length of Gearbox in mm)24.4 | Gearbox Weight (lbs).08 | Rated Torque (oz-in)14 | Efficiency (%)90 |
| Gear RatioR14 | Exact Gear Ratio13.76 | Peak Torque (oz-in)83.2 | Number of Gear Trains2 | "L1" (Length of Gearbox in mm)34.5 | Gearbox Weight (lbs).10 | Rated Torque (oz-in)28 | Efficiency (%)81 |
| Gear RatioR19 | Exact Gear Ratio19.22 | Peak Torque (oz-in)83.2 | Number of Gear Trains2 | "L1" (Length of Gearbox in mm)34.5 | Gearbox Weight (lbs).10 | Rated Torque (oz-in)28 | Efficiency (%)81 |
| Gear RatioR27 | Exact Gear Ratio26.83 | Peak Torque (oz-in)83.2 | Number of Gear Trains2 | "L1" (Length of Gearbox in mm)34.5 | Gearbox Weight (lbs).10 | Rated Torque (oz-in)28 | Efficiency (%)81 |
| Gear RatioR51 | Exact Gear Ratio51.06 | Peak Torque (oz-in)208.2 | Number of Gear Trains3 | "L1" (Length of Gearbox in mm)41.5 | Gearbox Weight (lbs).12 | Rated Torque (oz-in)69 | Efficiency (%)73 |
| Gear RatioR71 | Exact Gear Ratio71.30 | Peak Torque (oz-in)208.2 | Number of Gear Trains3 | "L1" (Length of Gearbox in mm)41.5 | Gearbox Weight (lbs).12 | Rated Torque (oz-in)69 | Efficiency (%)73 |
| Gear RatioR100 | Exact Gear Ratio99.55 | Peak Torque (oz-in)208.2 | Number of Gear Trains3 | "L1" (Length of Gearbox in mm)41.5 | Gearbox Weight (lbs).12 | Rated Torque (oz-in)69 | Efficiency (%)73 |
| Gear RatioR139 | Exact Gear Ratio138.99 | Peak Torque (oz-in)208.2 | Number of Gear Trains3 | "L1" (Length of Gearbox in mm)41.5 | Gearbox Weight (lbs).12 | Rated Torque (oz-in)69 | Efficiency (%)73 |
| Gear RatioR189 | Exact Gear Ratio189.45 | Peak Torque (oz-in)416.3 | Number of Gear Trains4 | "L1" (Length of Gearbox in mm)49.8 | Gearbox Weight (lbs).14 | Rated Torque (oz-in)139 | Efficiency (%)66 |
| Gear RatioR264 | Exact Gear Ratio264.52 | Peak Torque (oz-in)416.3 | Number of Gear Trains4 | "L1" (Length of Gearbox in mm)49.8 | Gearbox Weight (lbs).14 | Rated Torque (oz-in)139 | Efficiency (%)66 |
| Gear RatioR369 | Exact Gear Ratio369.32 | Peak Torque (oz-in)416.3 | Number of Gear Trains4 | "L1" (Length of Gearbox in mm)49.8 | Gearbox Weight (lbs).14 | Rated Torque (oz-in)139 | Efficiency (%)66 |
| Gear RatioR516 | Exact Gear Ratio515.64 | Peak Torque (oz-in)416.3 | Number of Gear Trains4 | "L1" (Length of Gearbox in mm)49.8 | Gearbox Weight (lbs).14 | Rated Torque (oz-in)139 | Efficiency (%)66 |
| Gear RatioR720 | Exact Gear Ratio719.98 | Peak Torque (oz-in)416.3 | Number of Gear Trains4 | "L1" (Length of Gearbox in mm)49.8 | Gearbox Weight (lbs).14 | Rated Torque (oz-in)139 | Efficiency (%)66 |
.png)
.png)
.png)
