BLWRPG112S-36V-10000
| Rated Power (W) | 42 |
|---|---|
| Rated Voltage (V) | 36 |
| Rated Current (A) | 2.36 |
| Rated Motor Speed (rpm) | 10000 |
| Rated Torque (oz-in) | 5.66 |
| Peak Torque (oz-in) | 17 |
| Line-to-Line Resistance (ohms) | 1.56 |
| Line To Line Inductance (mH) | 0.75 |
| Motor Back EMF Voltage (V/kRPM) | 1.5 |
| Torque Constant (oz-in/A) | 2 |
| Rotor Inertia (oz-in-sec2) | 0.1524836 |
| Motor Weight (lbs) | 0.62 |
| L2 Motor Length (mm) | 77 |
Interested in large quantity discount?
Product Information

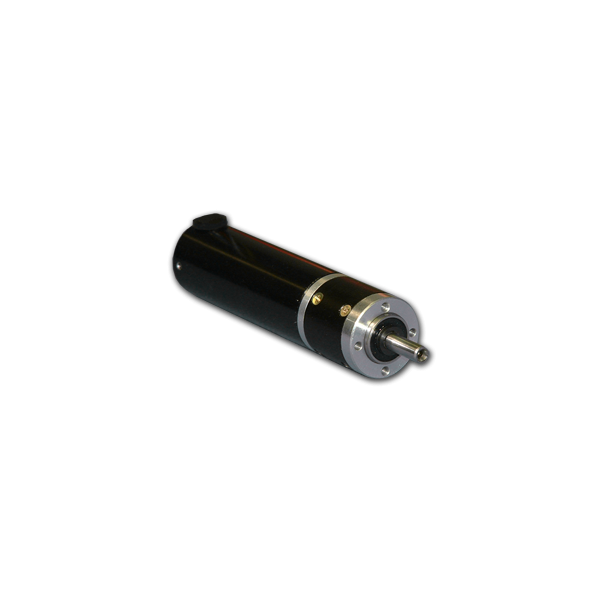

The BLWRPG11 Series are cost-effective Brushless DC Planetary Gearmotors. These motors are
designed keeping the OEM in mind, using state of the art design parameters and low-cost manufacturing.
This allows us to offer these quality motors at exceptional prices. The BLWRPG11 Series include a
planetary gearbox and a brushless DC motor in a compact fully integrated package. The brushless DC
gearmotor is a perfect solution for applications requiring high torque or speeds under 500 RPM. These
star wound motors come with integrated hall sensors for closed loop control for velocity applications. If
the off-the-shelf gearmotors do no match your application, a motor can be wound or a gearbox can be
selected to meet your specific requirements. We specialize in providing both off the shelf and custom
solutions to handle any demanding application.
For Pricing and availability, please feel free to Contact Us.
- NEMA 11 Size
- Long Life - Over 3,000 Hour Operation
- Cost-Effective Replacement For Brush DC Motors
- Backlash Less than 3°
- Can be Customized for
- Operating Voltage
- Rated Speed
- Cables and Connectors
- CE Certified, and RoHS Compliant
| Output Shaft of Gearbox | ||||||
|---|---|---|---|---|---|---|
| Gear Ratio | Peak Torque (oz-in) | Number of Gear Trains | "L1" (Length of Gearbox in mm) | Gearbox Weight (lbs) | Rated Torque (oz-in) | Efficiency (%) |
| Gear RatioR3.7 | Peak Torque (oz-in)83 | Number of Gear Trains1 | "L1" (Length of Gearbox in mm)31.5 | Gearbox Weight (lbs)0.13 | Rated Torque (oz-in)28 | Efficiency (%)90 |
| Gear RatioR5.2 | Peak Torque (oz-in)83 | Number of Gear Trains1 | "L1" (Length of Gearbox in mm)31.5 | Gearbox Weight (lbs)0.13 | Rated Torque (oz-in)28 | Efficiency (%)90 |
| Gear RatioR14 | Peak Torque (oz-in)166 | Number of Gear Trains2 | "L1" (Length of Gearbox in mm)40.0 | Gearbox Weight (lbs)0.18 | Rated Torque (oz-in)55 | Efficiency (%)81 |
| Gear RatioR19 | Peak Torque (oz-in)166 | Number of Gear Trains2 | "L1" (Length of Gearbox in mm)40.0 | Gearbox Weight (lbs)0.18 | Rated Torque (oz-in)55 | Efficiency (%)81 |
| Gear RatioR27 | Peak Torque (oz-in)166 | Number of Gear Trains2 | "L1" (Length of Gearbox in mm)40.0 | Gearbox Weight (lbs)0.18 | Rated Torque (oz-in)55 | Efficiency (%)81 |
| Gear RatioR51 | Peak Torque (oz-in)417 | Number of Gear Trains3 | "L1" (Length of Gearbox in mm)48.5 | Gearbox Weight (lbs)0.20 | Rated Torque (oz-in)139 | Efficiency (%)73 |
| Gear RatioR71 | Peak Torque (oz-in)417 | Number of Gear Trains3 | "L1" (Length of Gearbox in mm)48.5 | Gearbox Weight (lbs)0.20 | Rated Torque (oz-in)139 | Efficiency (%)73 |
| Gear RatioR100 | Peak Torque (oz-in)417 | Number of Gear Trains3 | "L1" (Length of Gearbox in mm)48.5 | Gearbox Weight (lbs)0.20 | Rated Torque (oz-in)139 | Efficiency (%)73 |
| Gear RatioR139 | Peak Torque (oz-in)417 | Number of Gear Trains3 | "L1" (Length of Gearbox in mm)48.5 | Gearbox Weight (lbs)0.20 | Rated Torque (oz-in)139 | Efficiency (%)73 |
| Gear RatioR264 | Peak Torque (oz-in)833 | Number of Gear Trains4 | "L1" (Length of Gearbox in mm)57.5 | Gearbox Weight (lbs)0.24 | Rated Torque (oz-in)278 | Efficiency (%)66 |
| Gear RatioR720 | Peak Torque (oz-in)833 | Number of Gear Trains4 | "L1" (Length of Gearbox in mm)57.5 | Gearbox Weight (lbs)0.24 | Rated Torque (oz-in)278 | Efficiency (%)66 |
.png)
NOTE 1: Dual Shaft Version
.png)
.png)
