BLWRPG232S-36V-4000
| Rated Power (W) | 46 |
|---|---|
| Rated Voltage (V) | 36 |
| Rated Current (A) | 1.8 |
| Rated Motor Speed (rpm) | 4000 |
| Rated Torque (oz-in) | 15.58 |
| Peak Torque (oz-in) | 42.48 |
| Line-to-Line Resistance (ohms) | 1.53 |
| Line To Line Inductance (mH) | 4.39 |
| Motor Back EMF Voltage (V/kRPM) | 4.5 |
| Torque Constant (oz-in/A) | 8.5 |
| Rotor Inertia (oz-in-sec2) | 0.00106 |
| Motor Weight (lbs) | 1.1 |
| L2 Motor Length (mm) | 55 |
Interested in large quantity discount?
Product Information

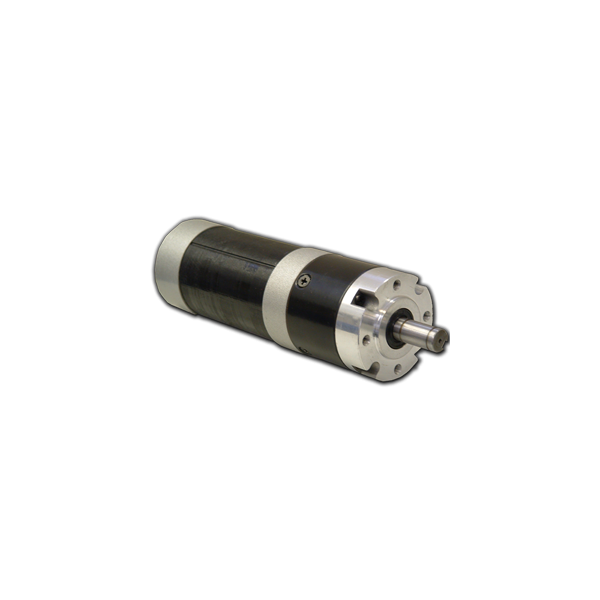

The BLWRPG23 Series are cost effective Brushless DC Planetary Gearmotors. These motors are designed keeping the OEM in mind, using state of the art design parameters and low-cost manufacturing. This allows us to offer these quality gearmotors at exceptional prices. The BLWRPG23 Series gearmotors include a planetary gearbox and a brushless DC motor in a compact, fully integrated package. The brushless DC gearmotor is a perfect solution for applications requiring high torque or speeds under 500 RPM. These delta wound motors come with integrated hall sensors for closed-loop control for velocity applications. If the off-the-shelf gearmotors do no match your application, a motor can be wound or a gearbox can be selected to meet your specific requirements. We specialize in providing both off-the-shelf and custom solutions to handle any demanding application. For this series, the price is dependent upon the ratio selection.
- Motor and Economy Gearbox
- Long Life - Over 3,000 Hour Operation
- Many Gear Ratios Available from 3.6:1 - 326:1
- Efficiency Up to 90%
- Backlash Less than 3 Degrees
- Can be Customized for
- Running Speed
- Winding Current
- Shaft Options
- CE Certified, and RoHS Compliant
| Output Shaft of Gearbox | ||||||
|---|---|---|---|---|---|---|
| Gear Ratio | Rated Torque (oz-in) | Peak Torque (oz-in) | Number of Gear Trains | "L1" (Length of Gearbox in mm) | Efficiency (%) | Gearbox Weight (lbs) |
| Gear RatioR3.6 | Rated Torque (oz-in)210 | Peak Torque (oz-in)625 | Number of Gear Trains1 | "L1" (Length of Gearbox in mm)41 | Efficiency (%)90 | Gearbox Weight (lbs)1.46 |
| Gear RatioR4.25 | Rated Torque (oz-in)210 | Peak Torque (oz-in)625 | Number of Gear Trains1 | "L1" (Length of Gearbox in mm)41 | Efficiency (%)90 | Gearbox Weight (lbs)1.46 |
| Gear RatioR13 | Rated Torque (oz-in)695 | Peak Torque (oz-in)2083 | Number of Gear Trains2 | "L1" (Length of Gearbox in mm)52.5 | Efficiency (%)81 | Gearbox Weight (lbs)1.64 |
| Gear RatioR15 | Rated Torque (oz-in)695 | Peak Torque (oz-in)2083 | Number of Gear Trains2 | "L1" (Length of Gearbox in mm)52.5 | Efficiency (%)81 | Gearbox Weight (lbs)1.64 |
| Gear RatioR18 | Rated Torque (oz-in)695 | Peak Torque (oz-in)2083 | Number of Gear Trains2 | "L1" (Length of Gearbox in mm)52.5 | Efficiency (%)81 | Gearbox Weight (lbs)1.64 |
| Gear RatioR47 | Rated Torque (oz-in)1390 | Peak Torque (oz-in)4166 | Number of Gear Trains3 | "L1" (Length of Gearbox in mm)64.0 | Efficiency (%)73 | Gearbox Weight (lbs)2.03 |
| Gear RatioR55 | Rated Torque (oz-in)1390 | Peak Torque (oz-in)4166 | Number of Gear Trains3 | "L1" (Length of Gearbox in mm)64.0 | Efficiency (%)73 | Gearbox Weight (lbs)2.03 |
| Gear RatioR65 | Rated Torque (oz-in)1390 | Peak Torque (oz-in)4166 | Number of Gear Trains3 | "L1" (Length of Gearbox in mm)64.0 | Efficiency (%)73 | Gearbox Weight (lbs)2.03 |
| Gear RatioR77 | Rated Torque (oz-in)1390 | Peak Torque (oz-in)4166 | Number of Gear Trains3 | "L1" (Length of Gearbox in mm)64.0 | Efficiency (%)73 | Gearbox Weight (lbs)2.03 |
| Gear RatioR168 | Rated Torque (oz-in)2080 | Peak Torque (oz-in)6249* | Number of Gear Trains4 | "L1" (Length of Gearbox in mm)84 | Efficiency (%)66 | Gearbox Weight (lbs)2.82 |
| Gear RatioR198 | Rated Torque (oz-in)2080 | Peak Torque (oz-in)6249* | Number of Gear Trains4 | "L1" (Length of Gearbox in mm)84 | Efficiency (%)66 | Gearbox Weight (lbs)2.82 |
| Gear RatioR234 | Rated Torque (oz-in)2080 | Peak Torque (oz-in)6249* | Number of Gear Trains4 | "L1" (Length of Gearbox in mm)84 | Efficiency (%)66 | Gearbox Weight (lbs)2.82 |
| Gear RatioR276 | Rated Torque (oz-in)2080 | Peak Torque (oz-in)6249* | Number of Gear Trains4 | "L1" (Length of Gearbox in mm)84 | Efficiency (%)66 | Gearbox Weight (lbs)2.82 |
| Gear RatioR326 | Rated Torque (oz-in)2080 | Peak Torque (oz-in)6249* | Number of Gear Trains4 | "L1" (Length of Gearbox in mm)84 | Efficiency (%)66 | Gearbox Weight (lbs)2.82 |
.png)
NOTE 1: Dual Shaft Version
.png)
.png)
