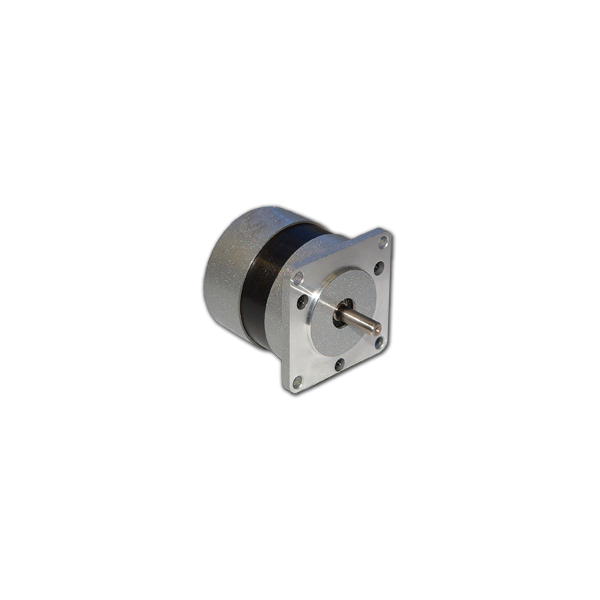

BLWS232D-24V-1350-1024SI5
| Rated Voltage (V) | 24 |
|---|---|
| Rated Power (Watts) | 16 |
| Rated Torque (oz-in) | 16 |
| Rated Speed (RPM) | 1350 |
| Torque Constant (oz-in/A) | 16.43 |
| Back EMF Voltage (V/kRPM) | 9.5 |
| Line-to-Line Resistance (ohm) | 6.88 |
| Line-to-Line Inductance (mH) | 18 |
| Rotor Inertia (oz-in-sec2) | 0.0010600 |
| "L" Length (in) | 2.76 |
| Weight (lbs) | 1.16 |
| Included Accessory | ENC-A5SI 1024 Line Encoder, Single-Ended, Index |
Interested in large quantity discount?
Product Information
The BLWS23 Series Brushless DC Motors come in a compact package with high power density. These motors are cost effective solutions to many velocity control applications. They come in five different stack lengths to provide you with just the right torque for your application. A number of windings are available off-the shelf, and all motors can be customized to fit your machine requirements. The motors come in a standard 8- lead configuration. We can also customize the windings to perfectly match your voltage, current, and maximum operating speed. Special shaft modifications, cables and connectors are also available upon request.
- NEMA Size 23 BLDC Motors
- Compact Size and Power Density
- Cost Effective Solution
- Long Life and Highly Reliable
- Cost Effective Replacement For Brush DC Motors
- Can be Customized for
- Maximum Speed
- Winding Current
- Shaft Options
- Cables and Connectors
- CE Certified and RoHS Compliant
.png)
.png)
.png)
