BLWS65234S-36V-4000
| Rated Voltage (V) | 36 |
|---|---|
| Rated Power (Watts) | 134 |
| Rated Torque (oz-in) | 45 |
| Rated Speed (RPM) | 4000 |
| Torque Constant (oz-in/A) | 8.5 |
| Back EMF Voltage (V/kRPM) | 4.8 |
| Line-to-Line Resistance (ohm) | 0.45 |
| Line-to-Line Inductance (mH) | 1.5 |
| Rotor Inertia (oz-in-sec2) | 0.0024500 |
| "L" Motor Length (mm) | 98 |
| Weight (lbs) | 2.2 |
Interested in large quantity discount?
Product Information

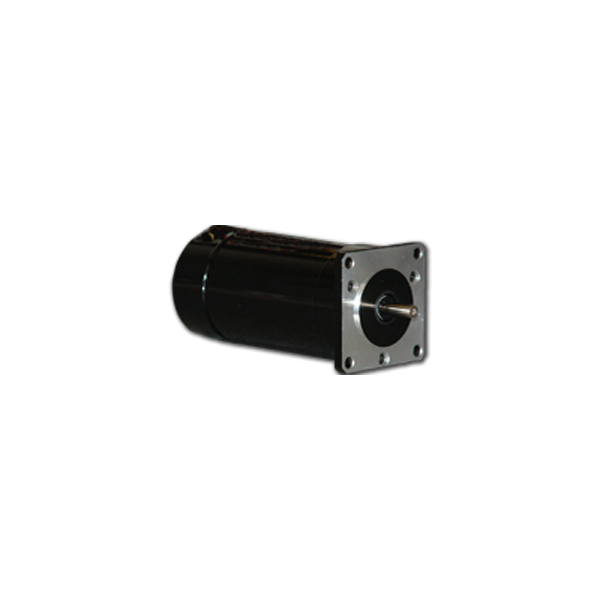

The compact BLWS6523 Series are NEMA 23 Brushless DC Motors that are IP65 rated which meet the splash-proof requirements for most applications. The sealed shafts further protect the motor, which in turn provides for longer life cycles. These round-bodied motors have a square-mounting flange, making them easy to install. The popular BLWS6523 series motors are available in five stack lengths, rated from 8 to 62 ounce-inches of torque, and offer an 8-lead configuration as standard. Customization to perfectly match a specific voltage, current, and maximum operating speed, as well as special shaft modifications, cables and connectors, is available.
- NEMA Size 23 BLDC Motors
- IP65 Rating
- Complete Protection from Dust Particle
- Can be Subjected to Wet Environments
- Compact Size and Power Density
- Cost Effective Solution
- Long Life and Highly Reliable
- Cost Effective Replacement For Brush DC Motors
- Can be Customized for
- Maximum Speed
- Winding Current
- Shaft Options
- Cables and Connectors
- CE Certified, and RoHS Compliant
