BLY172S-24V-6000
| Rated Voltage (V) | 24 |
|---|---|
| Rated Power (Watts) | 69 |
| Rated Torque (oz-in) | 15.5 |
| Rated Speed (RPM) | 6000 |
| Torque Constant (oz-in/A) | 3.68 |
| Back EMF Voltage (V/kRPM) | 1.91 |
| Line-to-Line Resistance (ohm) | 0.33 |
| Line To Line Inductance (mH) | 0.65 |
| Rotor Inertia (oz-in-sec2) | 0.000680 |
| "L" Length (in) | 2.37 |
| Weight (lbs) | 0.99 |
Interested in large quantity discount?
Product Information

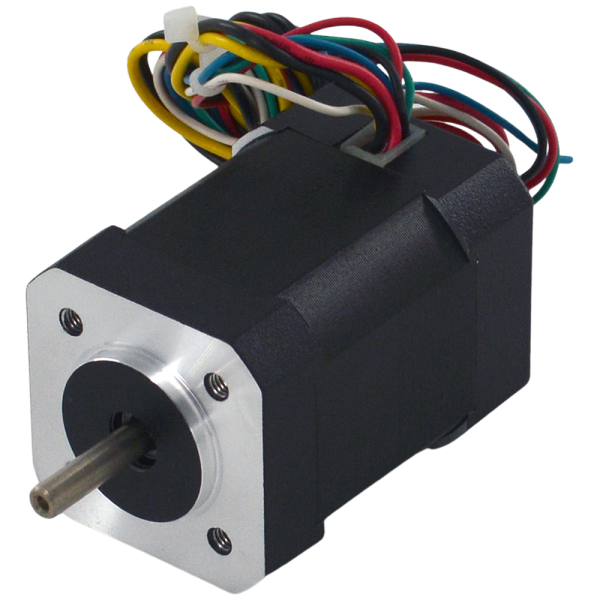

The BLY172S-24V-6000 is a compact, 42mm square-frame, 24V Brushless DC Motor designed to deliver high power density at a cost-effective price, making it an ideal choice for a wide range of velocity control applications. This single-stack motor provides a rated torque of 15.5 oz-in and features an 8-lead configuration, with three phase wires and five hall sensor wires for precise control.
Looking for a tailored solution? We offer motor winding customizations to meet your specific voltage, current, and speed requirements. Additional options include shaft modifications and value-added accessories such as encoders, brakes, cables, and connectors.
