BLY174D-24V-4000
| Rated Voltage (V) | 24 |
|---|---|
| Rated Power (Watts) | 104 |
| Rated Torque (oz-in) | 35.4 |
| Rated Speed (RPM) | 4000 |
| Torque Constant (oz-in/A) | 5.32 |
| Back EMF Voltage (V/kRPM) | 3.1 |
| Line-to-Line Resistance (ohm) | 0.3 |
| Line To Line Inductance (mH) | 0.5 |
| Rotor Inertia (oz-in-sec2) | 0.001359 |
| "L" Length (in) | 4.6 |
| Weight (lbs) | 1.76 |
Interested in large quantity discount?
Product Information

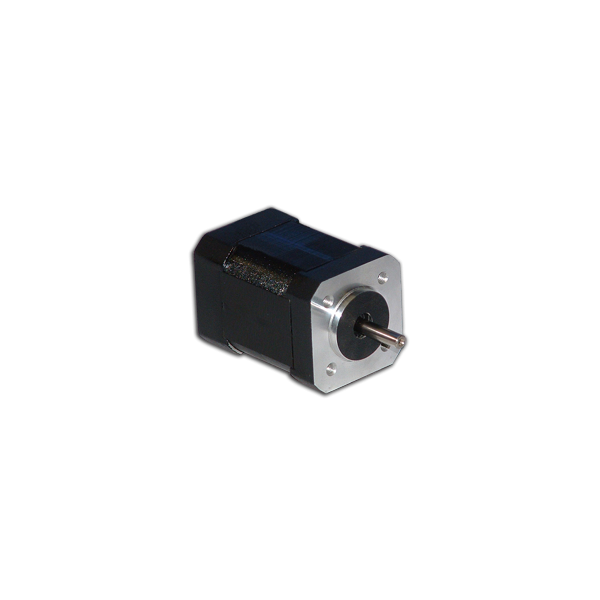

The BLY17 Series Brushless DC Motors come in a compact package with high power density. These motors are cost effective solutions to many velocity control applications. They come in four different stack lengths to provide you with just the right torque for your application. A number of windings are available off the shelf and all motors can be customized to fit your machine requirements. The motors come in a standard 8-lead configuration with three wires for the phases and five wires for the hall sensors. We can also customize the winding to perfectly match your voltage, current, and maximum operating speed. Special shaft modifications, cables and connectors are also available upon request.
- 42mm Square Body
- Compact Size and Power Density
- Cost Effective Replacement for Brush DC Motors
- Long Life and Highly Reliable
- Can be Customized for
- Maximum Speed
- Winding Current
- Shaft Options
- Cables and Connectors
- CE Certified and RoHS Compliant
.png)
.png)
.png)
.png)
.png)
