BLY344S-240V-3000
| Rated Voltage (V) | 240 |
|---|---|
| Rated Power (Watts) | 660 |
| Rated Torque (oz-in) | 297 |
| Rated Speed (RPM) | 3000 |
| Torque Constant (oz-in/A) | 93.46 |
| Back EMF Voltage (V/kRPM) | 42.26 |
| Line-to-Line Resistance (ohm) | 2.4 |
| Line To Line Inductance (mH) | 9.5 |
| Rotor Inertia (oz-in-sec2) | 0.033984 |
| "L" Length (in) | 4.92 |
| Weight (lbs) | 8.82 |
Interested in large quantity discount?
Product Information

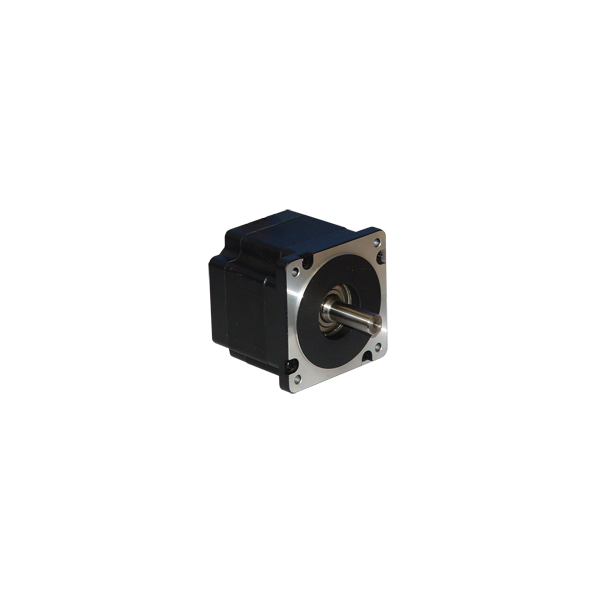

The BLY34 Series Brushless DC Motors come in a compact package with high power density. These motors are cost-effective solutions to many velocity control applications. They are available in both single and dual shaft options, and come in four different stack lengths to provide you with just the right torque for your application. A number of windings are available off-the-shelf and the motors can be customized to fit your machine requirements. The motor comes in a standard 11-lead configuration and can be wired for either delta or star configurations. We can also customize the winding to perfectly match your voltage, current, and maximum operating speed. Special shaft modifications, cables and connectors are also available upon request.
- NEMA Size 34 BLDC Motors
- Compact Size and High Power Density
- Long Life - 20,000 Hour Operation
- Cost-Effective Replacement For Brush DC Motors
- Can be Customized for
- Maximum Speed/Winding Current
- Shaft Options
- Cables and Connectors
- CE Certified and RoHS Compliant
