BDSG-80-100
BDSG-80-100 | Anaheim Automation, Inc.
Information
The BDSG-80-100 Series was designed for high-volume OEM applications with low cost
being the primary objective. Available in gear ratios from 3 to 75, the BDSG-80-100
Series gearmotor offers continuous torque of up to 1416 oz-in. These motors are fully
reversible. The BDSG-80-100 Series gearmotors are a cost-effective solution to
manage motion control in many rotary applications including medical, semiconductor, pumps,
robotics, CNC or any other situation when a low cost Brush DC Spur gearmotor is needed.
- DC Brush Spur Gearmotor
- Designed for High Volume Applications
- Up to 1416 oz-in of Continuous Torque
- 80mm Motor Diameter
- Custom Versions are available

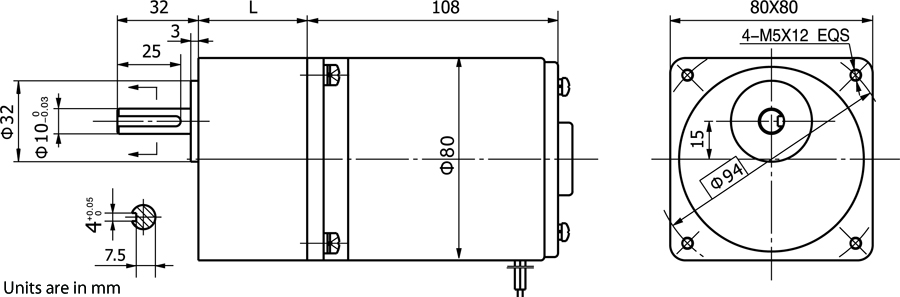

| Item | Gear Ratio | Rated Torque (oz-in) | Peak Torque (oz-in) | No Load Speed (rpm) | Rated Speed (RPM) | Nominal Voltage (V) | Output Power (W) | Body Diameter (mm) | Total Length (mm) | Gearbox Length "L" (mm) | Shaft Diameter (mm) | Weight (lbs) | Lead Time | 1pc Price (USD) | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BDSG-80-100-24V-3000-R75 | 75 | 1416.1 | 2832.2 | 40 | 35 | 24 | 80 | 80 | 108 | 151 | 10 | 5.51 | Typ 110 Days | $224.00 | Call Us Contact Us |
| BDSG-80-100-24V-3000-R60 | 60 | 1416.1 | 2832.2 | 50 | 43 | 24 | 80 | 80 | 108 | 151 | 10 | 5.51 | Typ 110 Days | $224.00 | Call Us Contact Us |
| BDSG-80-100-24V-3000-R50 | 50 | 1401.9 | 2124.2 | 60 | 52 | 24 | 80 | 80 | 108 | 151 | 10 | 5.51 | Typ 110 Days | $208.00 | Call Us Contact Us |
| BDSG-80-100-24V-3000-R40 | 40 | 1246.2 | 2124.2 | 75 | 65 | 24 | 80 | 80 | 108 | 151 | 10 | 5.51 | Typ 110 Days | $208.00 | Call Us Contact Us |
| BDSG-80-100-24V-3000-R36 | 36 | 1118.7 | 2124.2 | 83 | 72 | 24 | 80 | 80 | 108 | 151 | 10 | 5.51 | Typ 110 Days | $208.00 | Call Us Contact Us |
| BDSG-80-100-24V-3000-R30 | 30 | 934.6 | 2124.2 | 100 | 87 | 24 | 80 | 80 | 108 | 151 | 10 | 5.51 | Typ 110 Days | $208.00 | Call Us Contact Us |
| BDSG-80-100-24V-3000-R25 | 25 | 778.8 | 2124.2 | 120 | 104 | 24 | 80 | 80 | 108 | 151 | 10 | 5.51 | Typ 110 Days | $208.00 | Call Us Contact Us |
| BDSG-80-100-24V-3000-R20 | 20 | 623.1 | 2124.2 | 150 | 130 | 24 | 80 | 80 | 108 | 151 | 10 | 4.72 | Typ 110 Days | $208.00 | Call Us Contact Us |
| BDSG-80-100-24V-3000-R18 | 18 | 623.1 | 708.1 | 167 | 144 | 24 | 80 | 80 | 108 | 140 | 10 | 4.72 | Typ 110 Days | $208.00 | Call Us Contact Us |
| BDSG-80-100-24V-3000-R15 | 15 | 509.8 | 708.1 | 200 | 173 | 24 | 80 | 80 | 108 | 140 | 10 | 4.72 | Typ 110 Days | $192.00 | Call Us Contact Us |
| BDSG-80-100-24V-3000-R12.5 | 12.5 | 424.8 | 708.1 | 240 | 208 | 24 | 80 | 80 | 108 | 140 | 10 | 4.72 | Typ 110 Days | $192.00 | Call Us Contact Us |
| BDSG-80-100-24V-3000-R10 | 10 | 339.8 | 708.1 | 300 | 260 | 24 | 80 | 80 | 108 | 140 | 10 | 4.72 | Typ 110 Days | $192.00 | Call Us Contact Us |
| BDSG-80-100-24V-3000-R9 | 9 | 311.5 | 708.1 | 333 | 289 | 24 | 80 | 80 | 108 | 140 | 10 | 4.72 | Typ 110 Days | $192.00 | Call Us Contact Us |
| BDSG-80-100-24V-3000-R7.5 | 7.5 | 254.9 | 708.1 | 400 | 347 | 24 | 80 | 80 | 108 | 140 | 10 | 4.72 | Typ 110 Days | $192.00 | Call Us Contact Us |
| BDSG-80-100-24V-3000-R6 | 6 | 212.4 | 708.1 | 500 | 433 | 24 | 80 | 80 | 108 | 140 | 10 | 4.72 | Typ 110 Days | $192.00 | Call Us Contact Us |
| BDSG-80-100-24V-3000-R5 | 5 | 169.9 | 708.1 | 600 | 520 | 24 | 80 | 80 | 108 | 140 | 10 | 4.72 | Typ 110 Days | $192.00 | Call Us Contact Us |
| BDSG-80-100-24V-3000-R3 | 3 | 114.7 | 708.1 | 1000 | 800 | 24 | 80 | 80 | 108 | 140 | 10 | 4.72 | Typ 110 Days | $192.00 | Call Us Contact Us |
