BLU09

BLU09 | Anaheim Automation, Inc.

Information

The BLU09 Series Brushless DC Motors come in a compact package with high power density. These motors are cost-effective solutions to many velocity control applications. With its small footprint, it is great for compact applications. These motors are ideal for high-speed applications. The rotor has been balanced to help achieve minimal vibrations. Spinning near 40,000 RPM's, ball bearings have been chosen with care to ensure long operation times. We can also customize the windings to perfectly match your voltage, current, and maximum operating speed. Special shaft modifications, cables and connectors are also available upon request.

  • Size 09 BLDC Motor
  • High Speed Motor
  • Compact Size and Power Density
  • Long Life and Highly Reliable
  • Cost-Effective Replacement for Brush DC Motors
  • Can be Customized for
    • Maximum Speed
    • Winding Current
    • Shaft Options
    • Cables and Connectors
Item (click for more information) Rated Voltage (V) Rated Power (Watts) Rated Torque (oz-in) Rated Speed (RPM) Torque Constant (oz-in/A) Back EMF Voltage (V/kRPM) Line-to-Line Resistance (ohm) Line-to-Line Inductance (mH) Rotor Inertia (oz-in-sec2) "L" Motor Length (mm) Weight (lbs) RoHS Compliant Lead Time 1pc Price (USD) Add to Cart

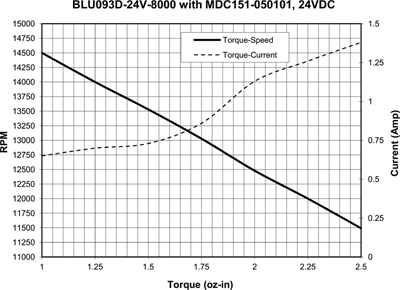

Sort by Name BLU093D-24V-8000 Rated Voltage (V) 24 Rated Power (Watts) 12 Rated Torque (oz-in) 2.12 Rated Speed (RPM) 8000 Torque Constant (oz-in/A) 0.8032 Back EMF Voltage (V/kRPM) 1.6 Line-to-Line Resistance (ohm) 4.8 Line-to-Line Inductance (mH) 0.315 Rotor Inertia (oz-in-sec2) 0.0000266 "L" Motor Length (mm) 50 Weight (lbs) 0.2 RoHS Compliant Yes Lead Time 8 in stock 1pc Price (USD) $121.00
Sort by Name BLU093S-32V-34400 Rated Voltage (V) 32 Rated Power (Watts) 102 Rated Torque (oz-in) 4 Rated Speed (RPM) 34000 Torque Constant (oz-in/A) 1.069 Back EMF Voltage (V/kRPM) 0.59 Line-to-Line Resistance (ohm) 1.1 Line-to-Line Inductance (mH) 0.08 Rotor Inertia (oz-in-sec2) 0.0000266 "L" Motor Length (mm) 50 Weight (lbs) 0.2 RoHS Compliant Yes Lead Time 4 in stock 1pc Price (USD) $121.00
Sort by Name BLU093S-24V-34400 Rated Voltage (V) 24 Rated Power (Watts) 84 Rated Torque (oz-in) 3 Rated Speed (RPM) 34400 Torque Constant (oz-in/A) 0.8032 Back EMF Voltage (V/kRPM) 0.44 Line-to-Line Resistance (ohm) 0.9 Line-to-Line Inductance (mH) 0.05 Rotor Inertia (oz-in-sec2) 0.0000266 "L" Motor Length (mm) 50 Weight (lbs) 0.2 RoHS Compliant Yes Lead Time 22 in stock 1pc Price (USD) $121.00
Sort by Name BLU092S-24V-14400 Rated Voltage (V) 24 Rated Power (Watts) 22 Rated Torque (oz-in) 2 Rated Speed (RPM) 14400 Torque Constant (oz-in/A) 1.767 Back EMF Voltage (V/kRPM) 0.97 Line-to-Line Resistance (ohm) 5.3 Line-to-Line Inductance (mH) 0.34 Rotor Inertia (oz-in-sec2) 0.0000155 "L" Motor Length (mm) 42.9 Weight (lbs) 0.16 RoHS Compliant Yes Lead Time 40 in stock 1pc Price (USD) $109.00
Loading...

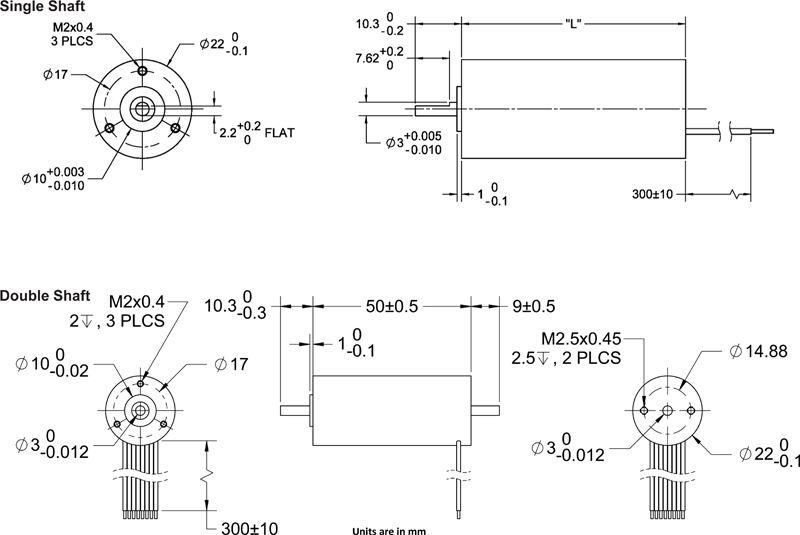

Note: The 7th character "S" denotes a single shaft, use "D" for double shaft. Custom leadwires, cables, connectors, and windings are available upon request.
