BLU092S-24V-14400

BLU092S-24V-14400

BLU093S-32V-34400

BLU093S-32V-34400

BLU093S-24V-34400

Unit Price:
$124.00
Quantity Discount
  • Buy 10 for $112.06 each and save 10%
  • Buy 25 for $107.39 each and save 13%
  • Buy 50 for $92.26 each and save 26%
  • Buy 100 for $88.71 each and save 28%
Inventory:
36
In stock
More Information
Rated Voltage (V) 24
Rated Power (Watts) 84
Rated Torque (oz-in) 3
Rated Speed (RPM) 34400
Torque Constant (oz-in/A) 0.8032
Back EMF Voltage (V/kRPM) 0.44
Line-to-Line Resistance (ohm) 0.9
Line-to-Line Inductance (mH) 0.05
Rotor Inertia (oz-in-sec2) 0.0000266
"L" Motor Length (mm) 50
Weight (lbs) 0.2
Interested in large quantity discount?

Product Information

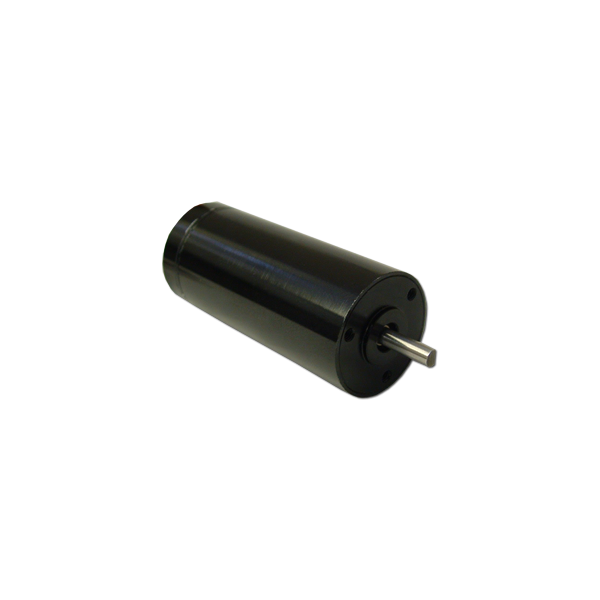

The BLU09 Series Brushless DC Motors come in a compact package with high power density. These motors are cost effective solutions to many velocity control applications. With its small footprint, it is great for compact applications. These motors are great for your next high speed application. The rotor has been balanced to help achieve minimal vibrations. Spinning near 40,000 RPM's, ball bearings have been chosen with care to ensure long operation times. We can also customize the windings to perfectly match your voltage, current, and maximum operating speed. Special shaft modifications, cables and connectors are also available upon request.

  • Size 09 BLDC Motor
  • High Speed Motor
  • Compact Size and Power Density
  • Long Life and Highly Reliable
  • Cost-Effective Replacement for Brush DC Motors
  • Can be Customized for
    • Maximum Speed
    • Winding Current
    • Shaft Options
    • Cables and Connectors

3D PDF

.STEP File (.RAR File)

Spec Sheet (PDF)

RoHS Compliant
