BSC-AAM-BSHR-008-2.5-RC7-P1-250
| Screw Length | 250 |
|---|---|
| Helix | Right |
| d | 8 |
| I | 2.5 |
| D | 17.5 |
| A | M15x1P |
| B | 7.5 |
| L | 23.5 |
| L1 | 10 |
| N | 3 |
| L2 | - |
| Q | - |
| n | 2.5x1 |
| Ca | 189 |
| Coa | 381 |
Interested in large quantity discount?
Product Information

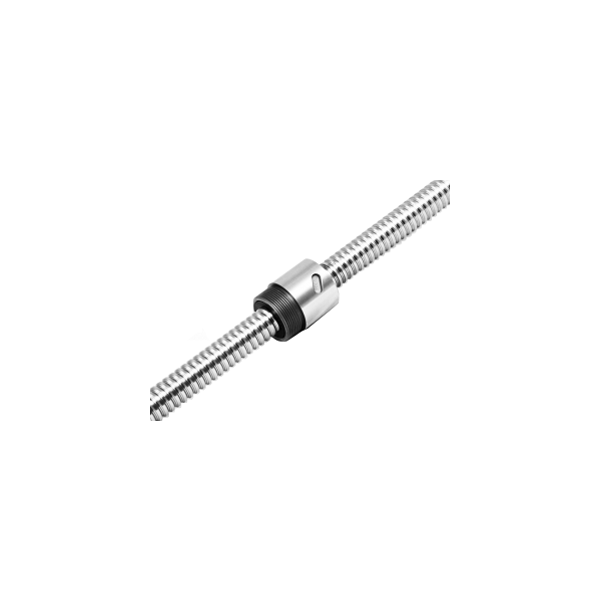

The BSHx-008 Series Ball Screws have a diameter of 8mm with a 2.5mm lead. The assembly provides a dynamic force up to 189 Kgf and a static force up to 381 Kgf. The maximum length for this screw is 1,000mm. All ball screws listed are cut to length. End machining available. Submit your drawing to [email protected]
For assistance in selecting the appropriate ball screw for your application, please fill out our Ball Screw Application Sheet and submit it to our sales department.
- 8mm Diameter with a 2.5mm Lead
- Dynamic Force: Up to 189 Kgf
- Static Load: Up to 381 Kgf
- Screw Lengths Up to 1,000mm
- Custom Screw Sizes Available
- Standard is C7 Accuracy and P1 Preload
- Other Accuracies and Preloads Available Upon Request
