BSC-AAM-BSHR-012-04-RC7-P1-750
| Screw Length | 750 |
|---|---|
| Helix | Right |
| d | 12 |
| I | 4 |
| D | 25.5 |
| A | M20x1P |
| B | 10 |
| L | 34 |
| L1 | 13 |
| N | 3 |
| L2 | - |
| Q | - |
| n | 3.5x1 |
| Ca | 804 |
| Coa | 1649 |
Interested in large quantity discount?
Product Information

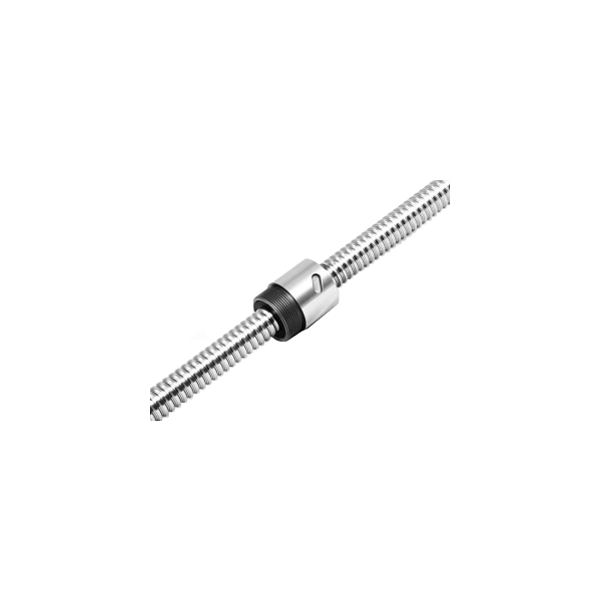

The BSHx-012 Series Ball Screws have a diameter of 12mm with a lead ranging from 4mm to 5mm. The assembly provides a dynamic force up to 804 Kgf and a static force up to 1649 Kgf. The maximum length for this screw is 1500mm. All ball screws listed are cut to length. End machining available. Submit your drawing to sales@anaheimautomation.com
For assistance in selecting the appropriate ball screw for your application, please fill out our Ball Screw Application Sheet and submit it to our sales department.
- 12mm Diameter with a 4mm-5mm Lead
- Dynamic Force: Up to 804 Kgf
- Static Load: Up to 1,649 Kgf
- Screw Lengths Up to 1,500mm
- Custom Screw Sizes Available
- Standard is C7 Accuracy and P1 Preload
- Other Accuracies and Preloads Available Upon Request
