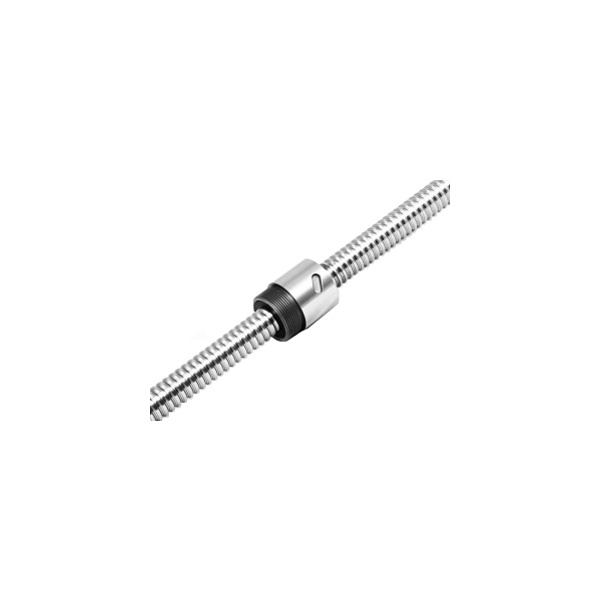

The BSHx-012 Series Ball Screws have a diameter of 12mm with a lead ranging from 4mm to 5mm. The assembly provides a dynamic force up to 804 Kgf and a static force up to 1649 Kgf. The maximum length for this screw is 1500mm. All ball screws listed are cut to length. End machining available. Submit your drawing to sales@anaheimautomation.com
For assistance in selecting the appropriate ball screw for your application, please fill out our Ball Screw Application Sheet and submit it to our sales department.
12mm Diameter with a 4mm-5mm Lead
Dynamic Force: Up to 804 Kgf
Static Load: Up to 1,649 Kgf
Screw Lengths Up to 1,500mm
Custom Screw Sizes Available
Standard is C7 Accuracy and P1 Preload
Other Accuracies and Preloads Available Upon Request
