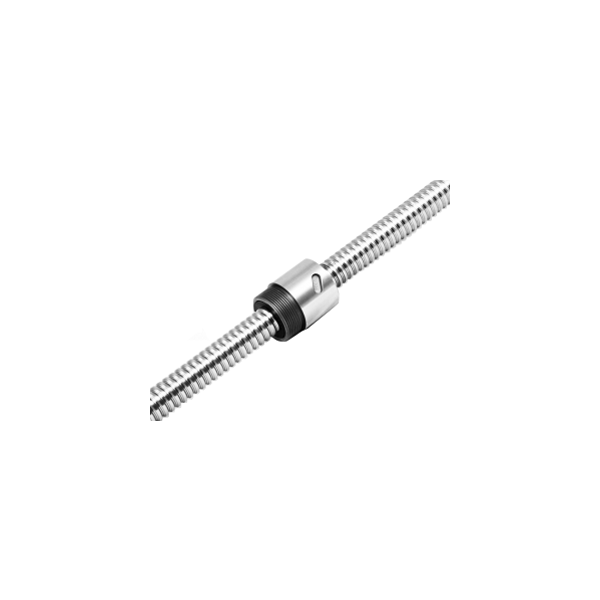

BSC-AAM-BSHR-025-05-RC7-P1-2250
| Screw Length | 2250 |
|---|---|
| Helix | Right |
| d | 25 |
| I | 5 |
| D | 43 |
| A | M40x1.5P |
| B | 19 |
| L | 69 |
| L1 | 32.11 |
| N | 3 |
| L2 | 8 |
| Q | M6 |
| n | 1x4 |
| Ca | 1724 |
| Coa | 4904 |
Interested in large quantity discount?
Product Information
The BSHx-020 Series Ball Screws have a diameter of The BSHx-025 Series Ball Screws have a diameter of 25mm with a 5mm lead. The assembly provides a dynamic force up to 1724 Kgf and a static force up to 4904 Kgf. The maximum length for this screw is 6000mm. All ball screws listed are cut to length. End machining available. Submit your drawing to sales@anaheimautomation.com
For assistance in selecting the appropriate ball screw for your application, please fill out our Ball Screw Application Sheet and submit it to our sales department.
- 25mm Diameter with a 5mm Lead
- Dynamic Force: Up to 1,724 Kgf
- Static Load: Up to 4,904 Kgf
- Screw Lengths Up to 6,000mm
- Custom Screw Sizes Available
- Standard is C7 Accuracy and P1 Preload
- Other Accuracies and Preloads Available Upon Request
