BSC-AAM-SFVR-025-05-RC7-P1-1000
| Screw Length | 1000 |
|---|---|
| Helix | Right |
| d | 25 |
| I | 5 |
| D | 50 |
| A | 73 |
| B | 11 |
| L | 55 |
| W | 61 |
| H | 52 |
| X | 5.5 |
| Y | 9.5 |
| Z | 5.5 |
| Q | M8 |
| n | 4.8x1 |
| Ca | 2017 |
| Coa | 5884 |
| Screw Diameter | 25 |
| Lead Time | Typ 51 Days |
Interested in large quantity discount?
Product Information

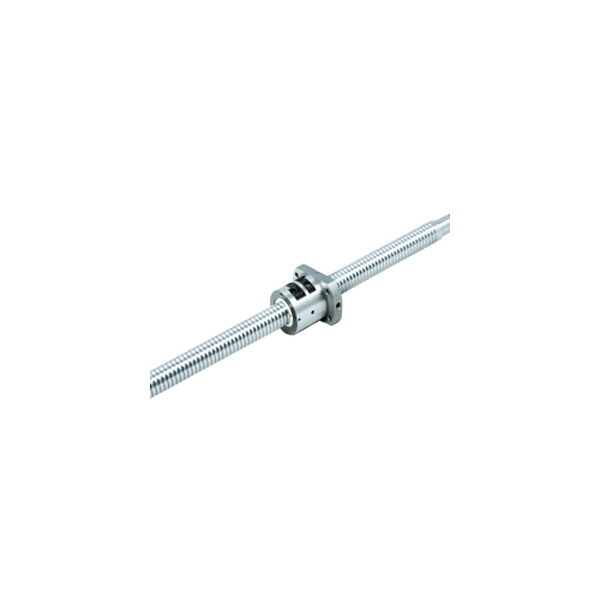

The SFVx-025 Series Ball Screws have a diameter of 25mm with leads ranging from 5mm to 10mm. The assembly provides a dynamic force up to 3,466 Kgf and a static force up to 8,776 Kgf. The maximum length for this screw is 6,000mm. All ball screws listed are cut to length. End machining available. Submit your drawing to [email protected]
For assistance in selecting the appropriate ball screw for your application, please fill out our Ball Screw Application Sheet and submit it to our sales department.
- 25mm Diameter with a 5mm-10mm Lead
- Dynamic Force: Up to 3,466 Kgf
- Static Load: Up to 8,776 Kgf
- Screw Lengths Up to 6,000mm
- Custom Screw Sizes Available
- Standard is C7 Accuracy and P1 Preload
- Other Accuracies and Preloads available upon request
