BSC-AAM-SFVR-032-05-RC7-P1-1000
| Screw Length | 1000 |
|---|---|
| Helix | Right |
| d | 32 |
| I | 5 |
| D | 58 |
| A | 85 |
| B | 12 |
| L | 56 |
| W | 71 |
| H | 64 |
| X | 6.6 |
| Y | 11 |
| Z | 6.5 |
| Q | M8 |
| n | 4.8x1 |
| Ca | 2249 |
| C0a | 7612 |
| Screw Diameter | 32 |
| Lead Time | Typ 51 Days |
Interested in large quantity discount?
Product Information

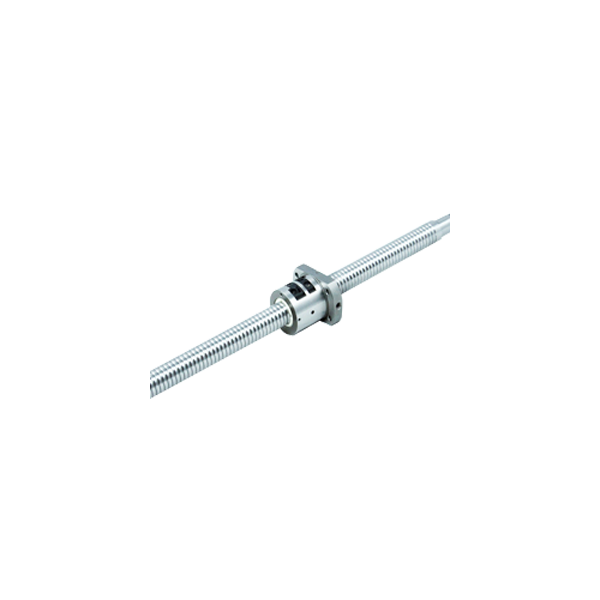

The SFVx-032 Series Ball Screws have a diameter of 32mm with leads ranging from 4mm to 10mm. The assembly provides a dynamic force up to 5,620 Kgf and a static force up to 14,649 Kgf. The maximum length for this screw is 6,000mm. All ball screws listed are cut to length. End machining available. Submit your drawing to [email protected]
For assistance in selecting the appropriate ball screw for your application, please fill out our Ball Screw Application Sheet and submit it to our sales department.
- 32mm Diameter with a 4mm-10mm Lead
- Dynamic Force: Up to 5,620 Kgf
- Static Load: Up to 14,649 Kgf
- Screw Lengths Up to 6,000mm
- Custom Screw Sizes Available
- Standard is C7 Accuracy and P1 Preload
- Other Accuracies and Preloads available upon request
