BSC-AAM-SFVR-040-05-RC7-P1-500

BSC-AAM-SFVR-040-05-RC7-P1-500

BSC-AAM-SFVR-040-05-RC7-P1-1500

BSC-AAM-SFVR-040-05-RC7-P1-1500

BSC-AAM-SFVR-040-05-RC7-P1-1000

1pc Price:
$597.00
Quantity Discount
  • Buy 10 for $472.52 each and save 21%
  • Buy 25 for $355.85 each and save 40%
  • Buy 50 for $348.17 each and save 42%
  • Buy 100 for $325.51 each and save 45%
Inventory:
More Information
Screw Length 1000
Helix Right
d 40
I 5
D 67
A 101
B 15
L 59
W 83
H 72
X 9
Y 14
Z 8.5
Q M8
n 4.8x1
Ca 2468
C0a 9586
Screw Diameter 40
Lead Time Typ 51 Days
Interested in large quantity discount?

Product Information

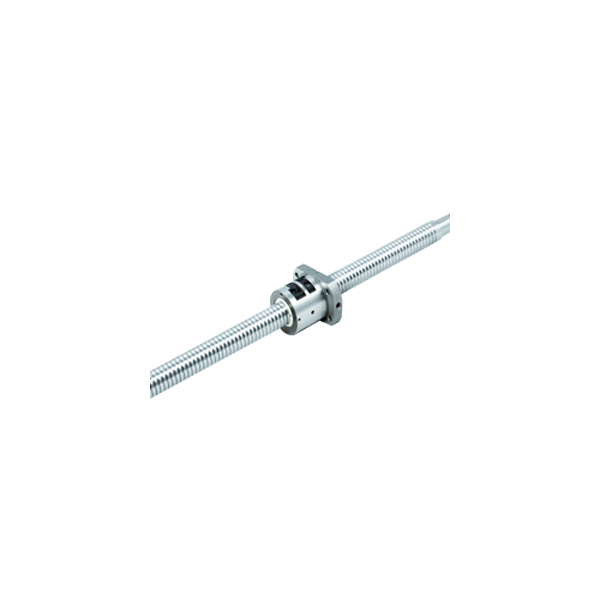

The SFVx-040 Series Ball Screws have a diameter of 40mm with leads ranging from 5mm to 20mm. The assembly provides a dynamic force up to 6,316 Kgf and a static force up to 18,600 Kgf. The maximum length for this screw is 6,000mm. All ball screws listed are cut to length. End machining available. Submit your drawing to [email protected]

For assistance in selecting the appropriate ball screw for your application, please fill out our Ball Screw Application Sheet and submit it to our sales department.

  • 40mm Diameter with a 5mm-20mm Lead
  • Dynamic Force: Up to 6,316 Kgf
  • Static Load: Up to 18,600 Kgf
  • Screw Lengths Up to 6,000mm
  • Custom Screw Sizes Available
  • Standard is C7 Accuracy and P1 Preload
  • Other Accuracies and Preloads available upon request

3D PDF

Spec Sheet (PDF)

Catalog
