BSCKB1-120081
| Input Range | 85 - 135VAC |
|---|---|
| Max Power (W) | 400 |
| Peak Current (A) | 8 |
| Feedback Loop | Adjustable |
Interested in large quantity discount?
Product Information

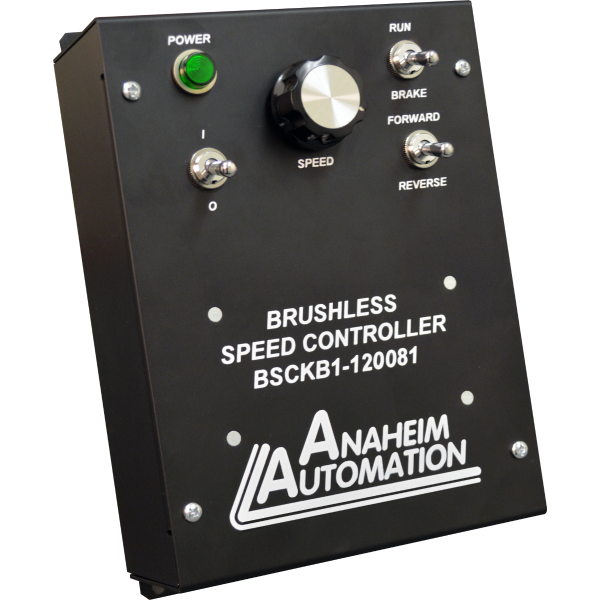

The BSCKB1-120081 is a speed controller that has integrated the MDCKB1-120081 driver, and is designed to drive DC Brushless motors at currents of up to 8A (peak) and 160V. The drive is protected against overcurrent (cycle-by-cycle), hall sensor error, and undervoltage. Included on the driver are internal potentiometeres to control the maximum phase current allowed into the motor, the maximum speed of the motor, the base speed of the motor, and closed loop compensation. In addition, there are integrated power, brake and directional switches and a speed control potentiometer to adjust the motor speed.
- Requires 85-135 VAC
- Maximum Current Limit Setting from 2-8 Amps (Peak)
- Potentiometer Speed Control
- Internal Max and Base Speed Adjustment
- 2-Quadrant Operation
- Hall Sensor Feedback
- Constant Velocity Mode
- Short-Circuit Protection
- Integrated Power, Brake and Direction Switches
- RoHS Compliant
