BSP-TM-SLFS-040-T4-N-P1-2500

BSP-TM-SLFS-040-T4-N-P1-2500

BSP-TM-SLFS-050-T4-N-P1-500

BSP-TM-SLFS-050-T4-N-P1-500

BSP-TM-SLFS-040-T4-N-P1-3000

Unit Price:
Inventory:
0
Out of Stock
More Information
Shaft Length 3000
d 40
D 64
L 100
A 100
B 18
F 36
Q 4
W 82
X 9
Y 14
C 2972
C0 4033
Interested in large quantity discount?

Product Information

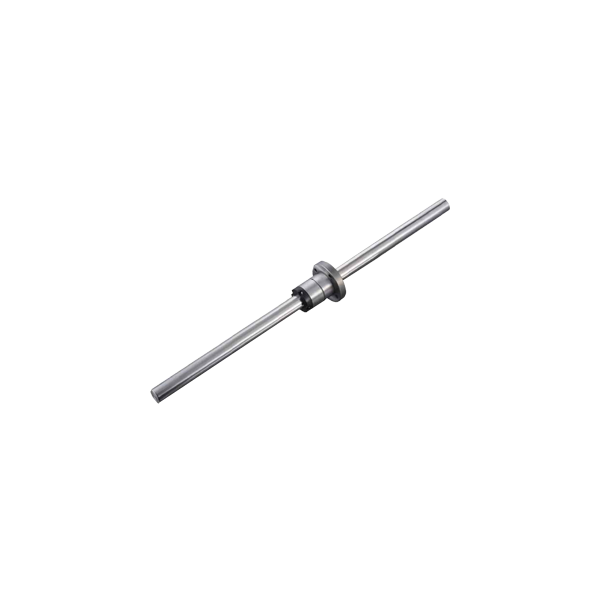

The SLFx-040 series Ball Splines have a shaft diameter of 40mm and come with a flanged nut. These spline shafts can be made to be either solid or hollow to fit your application needs. The ball spline nuts are designed with recirculating ball tracks which transmit torque linearly along the raceway of the spline shaft. The flange nut allows for easier assembly between the housing and the nut. This series can provide dynamic forces of up to2,972 kgf and static forces up to 4,033 kgf. The maximum length for this shaft is 3,000mm. The ends of the shaft can be customized per your drawing. Please contact Anaheim Automation to discuss your specific requirements.

  • Diameters Ranging from 6mm to 50mm
  • Dynamic Force: Up to2,972kgf
  • Static Force: Up to 4,033kgf
  • Shaft Lengths Up to 3,000mm
  • Solid and Hollow Spline Shafts
  • Precision-Ground Raceways
  • Accuracy Grades: Normal, High, and Precision
  • Preload Options: Zero, Slight, and Medium

Spec Sheet (PDF)
