BSP-TM-SLFS-050-T4-N-P1-2000
| Shaft Length | 2000 |
|---|---|
| d | 50 |
| D | 80 |
| L | 125 |
| A | 124 |
| B | 20 |
| F | 46.5 |
| Q | 4 |
| W | 102 |
| X | 11 |
| Y | 17.5 |
| C | 4086 |
| C0 | 5615 |
Interested in large quantity discount?
Product Information

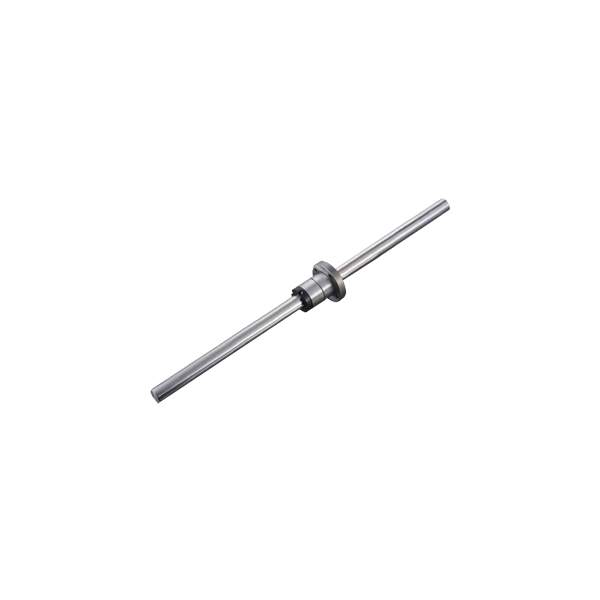

The SLFx-050 series Ball Splines have a shaft diameter of 50mm and come with a flanged nut. These spline shafts can be made to be either solid or hollow to fit your application needs. The ball spline nuts are designed with recirculating ball tracks which transmit torque linearly along the raceway of the spline shaft. The flange nut allows for easier assembly between the housing and the nut. This series can provide dynamic forces of up to 4,086 kgf and static forces up to 5,615 kgf. The maximum length for this shaft is 3,000mm. The ends of the shaft can be customized per your drawing. Please contact Anaheim Automation to discuss your specific requirements.
- 50mm Shaft Diameter
- Dynamic Force: Up to 4,086kgf
- Static Force: Up to 5,615kgf
- Shaft Lengths Up to 3,000mm
- Solid and Hollow Spline Shafts
- Precision-Ground Raceways
- Accuracy Grades: Normal, High, and Precision
- Preload Options: Zero, Slight, and Medium
.png)
.png)
.png)
Spec Sheet (PDF)
