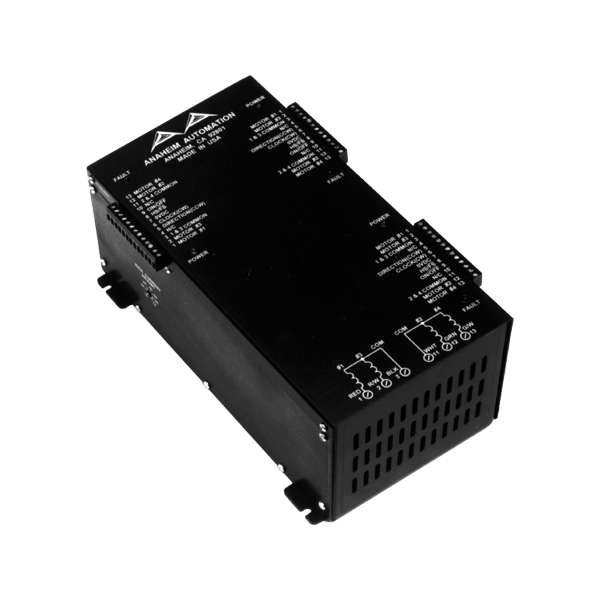

DPF72003XCE Stepper Motor Driver with AC Input

DPF72003XCE

DPF72003

1pc Price:
$2,728.00
Quantity Discount
  • Buy 10 for $1,848.84 each and save 32%
  • Buy 25 for $1,422.18 each and save 48%
  • Buy 50 for $1,171.80 each and save 57%
  • Buy 100 for $1,008.46 each and save 63%
Inventory:
More Information
Current Range (A) 1.0 - 7.0
Voltage Requirement 105 - 125 VAC
Steps per Revolution 200, 400
Pulse Generator / Controller -
Recommended Transformer Integrated
Lead Time Typ 5 Days
Interested in large quantity discount?

Product Information

The DPF72003 Driver Pack is designed to operate three 4-phase step motors rated at 1 - 7 amps/phase. These Driver Packs contain three BLD75 Step Motor Drivers, two 300 Watt transformers, and a cooling fan. Outstanding motor performance is provided by means of a Bilevel Drive technique. This multi-axis Driver Pack makes it an economical choice, because the cost per axis is reduced. DPF72003XCE is CE Certified.
For quick and easy hook-ups, see Accessories for shielded cable and other stepper motor options. For applications requiring a larger power supply capacity, see the DPK Series. For compatible high-torque stepper motors, consider our popular 23Y, 24Y, 34Y and 42Y Series. For standard torque (round-bodied motors), see 23D, 23W, 34D, and 42D Series.

  • Three-Axis Packages
  • Integrated 600 Watt Power Supply
  • 10 Amperes/phase Maximum Operating Current
  • 7 Amperes/phase Standstill Motor Current
  • Half-Step and Full-Step Operation
  • Bilevel Drive Operation
  • 105 - 125 VAC Input Option (DPF72002XCE, 90 - 265 VAC)
  • Unipolar Drive
  • No RFI or EMI Problems
  • Motor On/Off Input
  • TTL/CMOS Compatible Inputs
  • Clock and Directional or Dual Clock Operation
  • CE Certified (DPF72003XCE) and RoHS Compliant

3D PDF

.STEP File (.RAR File)

User Manual (PDF)

CE Certified
