DPFHP001

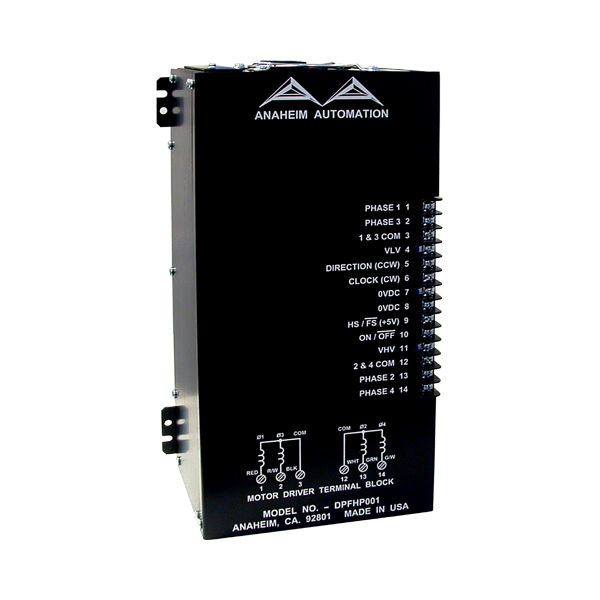

The DPFHP001 Step Motor Driver Pack is designed for motor applications that require very high power output and high start-stop step rates. Outstanding motor performance is achieved by means of an enhanced bilevel or dual-voltage drive technique. This Driver Pack contains a high-performance driver board (BLHP101), a 500VA transformer, and a dual power supply. It may be used with six- or eight-lead, size 34 and 42 step motors whose phase current ratings range from 2 to 12.5 Amperes per phase. Matched components make driver selection error-free.

Note: DPFHP001X250A has a terminal block for power input connections, while DPFHP001 uses an IEC connector for input power connection.

For quick and easy hook-ups, see Accessories for shielded motor cables, connectors, and other options. For compatible stepper motors, consider our popular 34Y and 42Y series. For standard torque, see 34D, and 42D series.

• Very High Motor Power Output
• 15 Amperes/phase Maximum Operating current
• 12.5 Amperes/phase Standstill motor current
• Internal Dual Voltage Power Supply with 500VA Transformer
• High Start-Stop Speeds
• Transient Voltage Suppression
• Halfstep and Fullstep Operation
• Bilevel Drive Operation (No RFI or EMI problems)
• TTL/CMOS Compatible Inputs
• Clock and Direction or Dual Clock Operation
• Motor On/Off Input
• +5VDC Output
