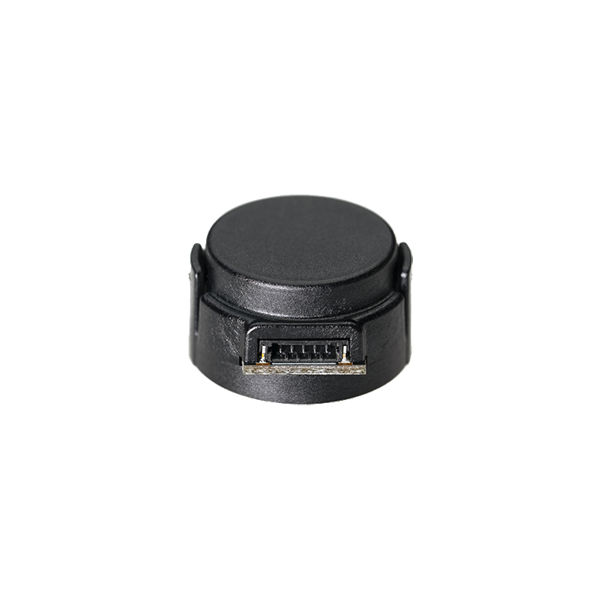

With an acceptable minimum shaft length of .236" and maximum shaft length of .305". Shaft sizes ranging from .059" to .079" in diameter, the ENC-A16S is a single-ended micro optical encoder designed to provide A, B and Index digital quadrature signals for high volume applications with limited space. The ENC-A16S module is designed to detect the rotary position with a code wheel. When attached to the end of a shaft, the encoder provides digital feedback information for motion control applications that require position, speed and/or direction control. Due to the A16's design, it is recommended for use as a onetime installation. These modules implement phased array detector technology providing superior performance and tolerances over traditional aperture mask type encoders. The ENC-A16S series provides digital quadrature outputs on all resolutions and are capable of sinking or sourcing 18 mA each. These encoders are powered from a single +5VDC power supply and are RoHS compliant.

*Select a part number from the chart below or build your own part number using the Ordering Information tab at the bottom of the page. ENC-CBL-CA-DF5 Cables and Centering Tools are also available. For instructions on installing your encoder to a motor, view our step by step video tutorial here.

• Miniature Size
• Push-on Hub with Spring Loaded Collet Design
• 250/256 to 4,000/4,096 Cycles Per Revolution (CPR)
• Off-Axis Mounting Tolerance of .010"
• A, B and Index Digital Quadrature Outputs
• Operating Temperature of -40° to +100° C
• Powered From a Single +5VDC Power Supply
