ENC-A4TD-0360-197-H-M

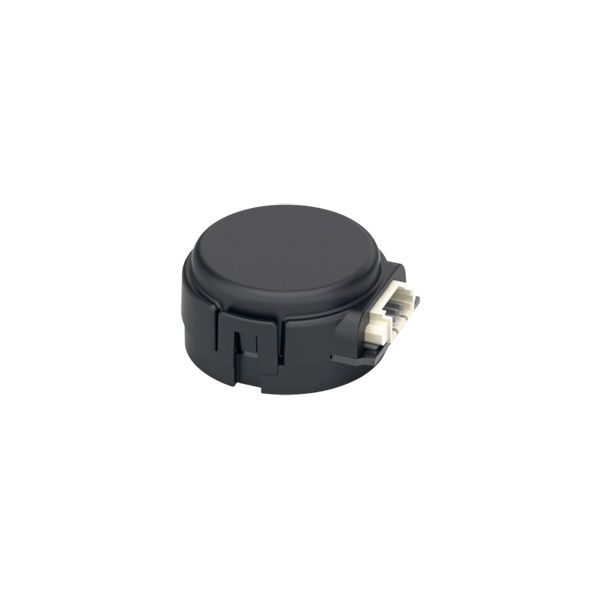

The ENC-A4TD is a miniature differential encoder designed for high-volume applications with space limitations. The ENC-A4TD accepts a minimum shaft length of 0.275" and maximum shaft length 0.395". Shaft sizes ranging from 0.079" to 0.250" in diameter. When attached to the end of a shaft, the encoder provides digital feedback control using an encoder module designed to detect the rotary position with a code wheel. This differential encoder consists of an LED source lens and a monolithic detector IC enclosed in a small polymer package. These modules implement phased array detector technology providing superior performance and tolerances over traditional aperture mask type encoders. The ENC-A4TD series provides digital quadrature outputs on all resolutions and are capable of sinking or sourcing 8 mA each. These encoders are powered from a single +5VDC power supply and are RoHS compliant and REACH Certified.

*Select a part number from the chart below or build your own part number using the Ordering Information tab at the bottom of the page. ENC-CBL-CA-MIC6 Cables and Centering Tools are also available. For instructions on installing your encoder to a motor, view our step by step video tutorial here.

• Miniature Size
• Off-Axis Mounting Tolerance of 0.010"
• Tracks 0 to 100,000 Cycles Per Second
• Operating Temperature of -20° to +100° C
• 100 to 1000 Cycles Per Revolution (CPR)
• Powered From a Single +5VDC Power Supply
• 2-Channel Quadrature Differential TTL Squarewave Output
• RoHS Compliant and REACH Certified
