ENC-A6DI-1024-250-M

Unit Price:
$101.00
Quantity Discount
  • Buy 10 for $86.47 each and save 14%
  • Buy 25 for $84.62 each and save 16%
  • Buy 50 for $82.85 each and save 18%
  • Buy 100 for $76.52 each and save 24%
Inventory:
0
Out of Stock
More Information
Cycles Per Rev (CPR) 1024
Bore Size .250"
Index Channel Yes
Base M
Interested in large quantity discount?

Product Information

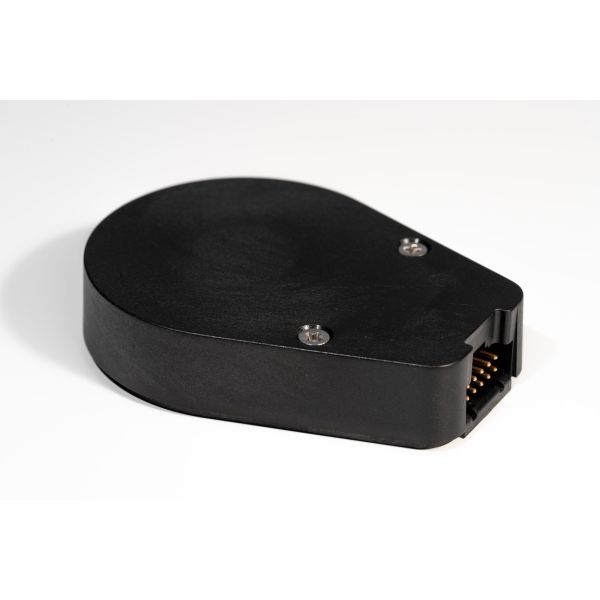

The ENC-A6DI is a Differential Optical Kit Encoder with Index designed for quick and simple assembly that fits any shaft diameters from 0.079" to 1". It fits to any shaft length over 0.445" diameter when equipped with the Hole in Cover option. However, the default required shaft length is from 0.445" to 0.570" and the Cover Extension required shaft length is 0.445" to 0.750". The ENC-A6DI module is designed to detect the rotary position with a code wheel. The ENC-A6DI can be attached to any existing shaft to provide digital feedback information. This Differential Encoder consists of a highly accurate aligned solid state light source and monolithic phased array sensor, when combined together they provide a system extremely tolerant to mechanical misalignments. The ENC-A6DI Differential Optical Kit Encoder has a molded, rugged 20% glass filled polycarbonate that utilizes a 10-Pin latching connector.

Note: All connectors, tools, and screws for base mounting are sold separately. Please consult our Sales Engineers for any questions.

  • 100 to 10,000 Cycles Per Revolution (CPR)
  • 2 Channel Quadrature TTL Squarewave Outputs
  • Operating Temp. (CPR < 3600) -40° to +100° C
  • Operating Temp. (CPR ≥ 3600) -25° to100° C
  • Powered from a +5VDC Power Supply
  • Positive Latching Connector
  • Allows for ±0.010" Axial Shaft Play
  • RoHS Compliant and REACH Certified
