ENC-A6SN-2500-472-M
| Cycles Per Rev (CPR) | 2500 |
|---|---|
| Bore Size | .472" |
| Index Channel | No |
| Base | M |
Interested in large quantity discount?
Product Information

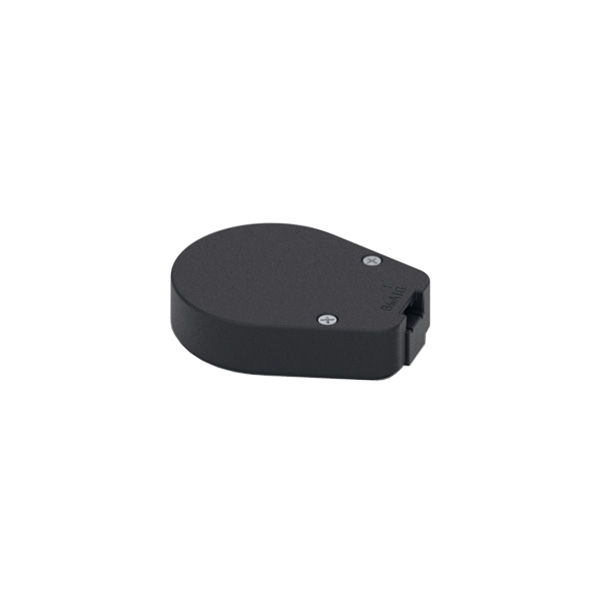

The ENC-A6SN is a Single-Ended Kit Encoder with no Index designed for quick and simple assembly that fits any shaft diameters from 0.079" to 1". It fits to any shaft length over 0.445" diameter when equipped with the Hole in Cover option. However, the default required shaft length is from 0.445" to 0.570" and the Cover Extension required shaft length is 0.445" to 0.750". The ENC-A6SN module is designed to detect the rotary position with a code wheel. The ENC-A6SN can be attached to any existing shaft to provide digital feedback information. This Single-Ended Encoder consists of a highly accurate aligned solid state light source and monolithic phased array sensor, when combined together they provide a system extremely tolerant to mechanical misalignments. The ENC-A6SN Single-Ended Optical Kit Encoder has a molded, rugged 20% glass filled polycarbonate that utilizes a 5-Pin latching connector.
Note: All connectors, tools, and screws for base mounting are sold separately. Please consult our Sales Engineers for any questions.
- 64 to 2,500 Cycles Per Revolution (CPR)
- 2 Channel Quadrature TTL Squarewave Outputs
- Operating Temperature -40° to +100° C
- Powered from a +5VDC Power Supply
- Positive Latching Connector
- Allows for ±0.010" Axial Shaft Play
- RoHS Compliant and REACH Certified
