ENC-AMT112S-V

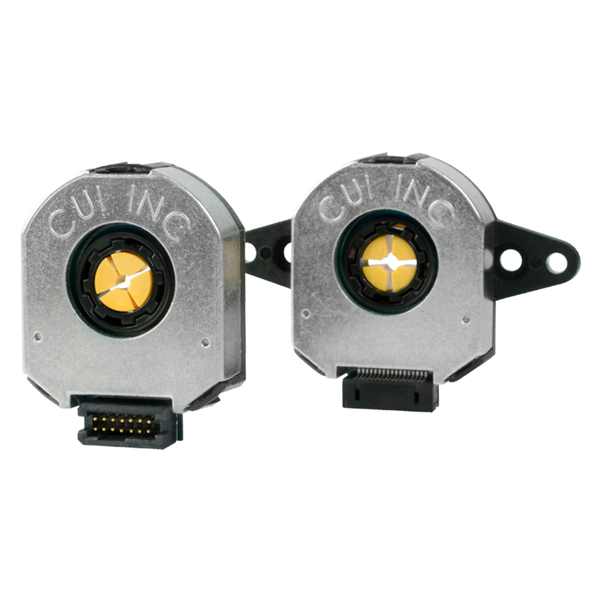

The AMT11 Modular Incremental Encoder is based on a new type of Capacitive technology. With CUI's new patented Capacitive ASIC technology this encoder is superior in every way compared to other encoders (Magnetic, Optical). The AMT11 is a rugged, high accuracy incremental encoder that offers resolutions up to 4096 CPR. Each AMT11 comes with 9 color coded bore sleeves, ranging from .079" to .315" that will adapt to 9 different motor shaft diameters. Also, included are two mounting tools, and with one standard and one wide baseplate that has multiple pre-drilled mounting hole patterns designed to mate with a wide range of motors. Furthermore, because of the Capacitive platform it is not susceptible to contaminants such as dirt, dust, and oil that usually plague encoders in industrial environments. With its compact package and low current draw, it's unlike any other encoders. The AMT11 is the perfect solution for your business whether it's for industrial, automation, robotics, or renewable energy applications.

• Low Power Consumption
• Patented Capacitive ASIC Technology
• Incremental Resolutions up to 4096 CPR
• Resolutions Programmable with AMT Viewpoint PC Software
• Single-Ended
• Kit with 9 Bore Sleeve Options (.079" to .315")
• Compact Modular Package with Locking Hub
• Radial and Axial Cable Connections
• 7 Mounting Hole Options
• -40 to 125°C Operating Temperature
