ENC-AMT212E-V

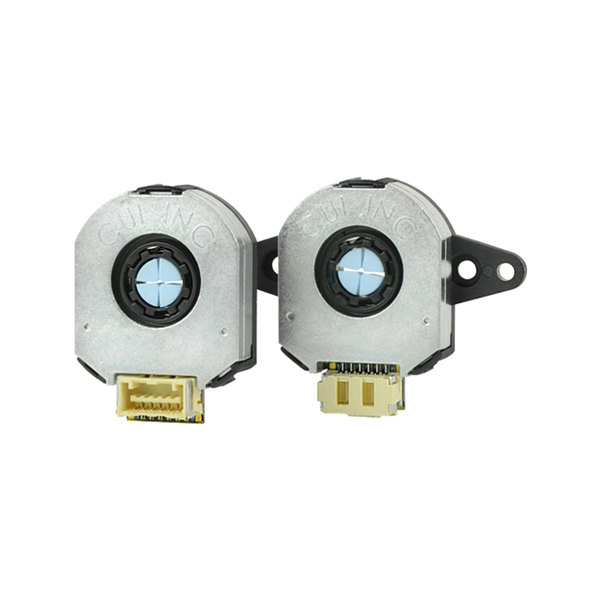

The AMT21 Modular Absolute Encoder is based on a new type of Capacitive technology. With CUI’s new patented Capacitive ASIC technology this Encoder is superior in every way compared to other Encoders (Magnetic, Optical). The AMT21 is a rugged, high accuracy Absolute Encoder outputting 12 Bits or 14 Bits of Absolute position information with RS-485 communication and single-turn or multi-turn output options, all in just one AMT21 Encoder. Also, there are 9 shaft diameter options, included in each kit. Each AMT21 comes with 9 color coded bore sleeves, ranging from .079” to .315” that will adapt to 9 different motor shaft diameters. Also, included are two mounting tools, and with one standard and one wide baseplate that has multiple pre-drilled mounting hole patterns designed to mate with a wide range of motors. Furthermore, because of the Capacitive platform it is not susceptible to contaminants such as dirt, dust, and oil that usually plague encoders in industrial environments. With its compact package and low current draw, it’s unlike any other Encoders. The AMT21 is the perfect solution for your business, whether it’s for industrial, automation, robotics, or renewable energy applications.

• 12 or 14-Bit Absolute Position or Multi-Turn Capability
• Compact Modular Package with Locking Hub
• Patented Capacitive ASIC Technology
• Settable Zero Position
• 3.3 V Half-Duplex RS485
• Kit with 9 Sleeve Options (.079” to .315”)
• High Speed Protocol for Fast Low Latency Position Data
• Radial and Axial Cable Connections
• -40 to 105° Operating Temperature
