ENC-C60DI-H-4096-4-12-L2
| Mounting | Compact Fixing Plate |
|---|---|
| Output Signal | A, /A, B, /B, I, /I |
| Output Circuit | PP/LD Universal Circuit |
| Cycles Per Rev (CPR) | 4096 |
| Power Supply Voltage (VDC) | +5 to +30V |
| Bore Diameter (mm) | 12 |
| Cable Length (m) | 2 |
Interested in large quantity discount?
Product Information

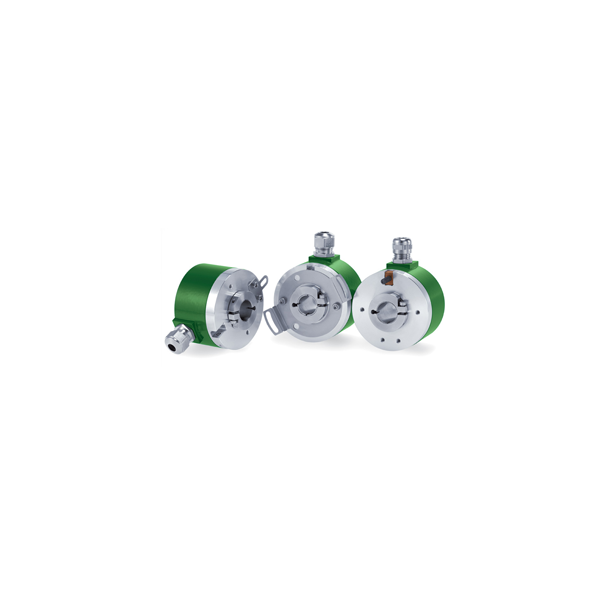

The ENC-C58/C59/C60 is a through hollow shaft encoder used for heavy Industrial and feedback applications. These encoders are offered with resolutions ranging from 4 to 5000 CPR (model dependent). These encoders fit shaft diameters up to 15mm, but reducing sleeves are available for shaft diameters as small as 6mm. With various mounting options, three output circuitry options, and input voltage ranges, these encoders can be customized to fit your applications needs. This line of encoders is CE Certified and RoHS Compliant.
*Select a part number from the chart below or build your own part number using the Ordering Information tab at the bottom of the page.
- Standard Encoder for Heavy Industrial Application
- Single-Ended or Differential Output
- 4 to 5,000 Cycles Per Revolution
- Through Shaft up to Ø15mm
- Optional Index Channel
- IP64 Standard
- Output Circuitry
- Push-Pull
- Line Driver AD26LS31
- PP/LD Universal Circuit
- Custom Options Available
- Custom Cable Lengths
- IP67 Protection
- Connection Options
.png)
.png)
.png)
