ENC-C81DN-L-2500-1-16-L2
| Output Signal | A, /A, B, /B |
|---|---|
| Output Circuit | Line Driver |
| Cycles Per Rev (CPR) | 2500 |
| Power Supply Voltage (VDC) | +5V ± 5% |
| Bore Diameter (mm) | 16 |
| Cable Length (m) | 2 |
Interested in large quantity discount?
Product Information

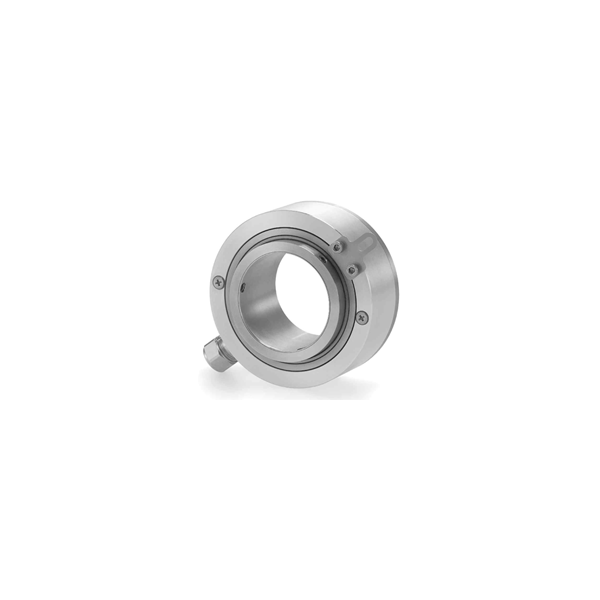

The ENC-C81 is a through hollow shaft encoder used for heavy Industrial and Elevator feedback applications. These encoders are offered with resolutions ranging from 12 to 4096 CPR (model dependent). These encoders fit shaft diameters up to 44mm, but reducing sleeves are available for shaft diameters as small as 15mm. With various mounting options, three output circuitry options, and input voltage ranges, these encoders can be customized to fit your applications needs.This line of encoders is CE Certified and RoHS Compliant.
*Select a part number from the chart below or build your own part number using the Ordering Information tab at the bottom of the page.
- Standard Encoder for Heavy Industrial Application
- Single-Ended or Differential Output
- 12 to 4,096 Cycles Per Revolution
- Hollow Shaft up to Ø44mm
- Optional Index Channel
- IP54 Standard
- Output Circuitry
- Push-Pull
- Line Driver
- PP/LD Universal Circuit
- IP54 Standard
- Custom Options Available
- Custom Cable Lengths
.png)
.png)
.png)
