ENC-CK58SI-H-10000-4-12.7-R-L2

ENC-CK58SI-H-10000-4-12.7-R-L2

ENC-CK58SN-L-00500-1-15-A-L1

ENC-CK58SN-L-00500-1-15-A-L1

ENC-CK58SI-L-09000-1-10-A-L1

Unit Price:
$550.00
Quantity Discount
  • Buy 10 for $525.94 each and save 4%
  • Buy 25 for $511.33 each and save 7%
  • Buy 50 for $497.51 each and save 10%
  • Buy 100 for $484.42 each and save 12%
Inventory:
0
Out of Stock
More Information
Mounting Anti-Rotation Pin
Output Signal A, B, I
Output Circuit Line Driver
Cycles Per Rev (CPR) 9000
Power Supply Voltage (VDC) +5V ± 5%
Bore Diameter (mm) 10
Cable Length (m) 1
Interested in large quantity discount?

Product Information

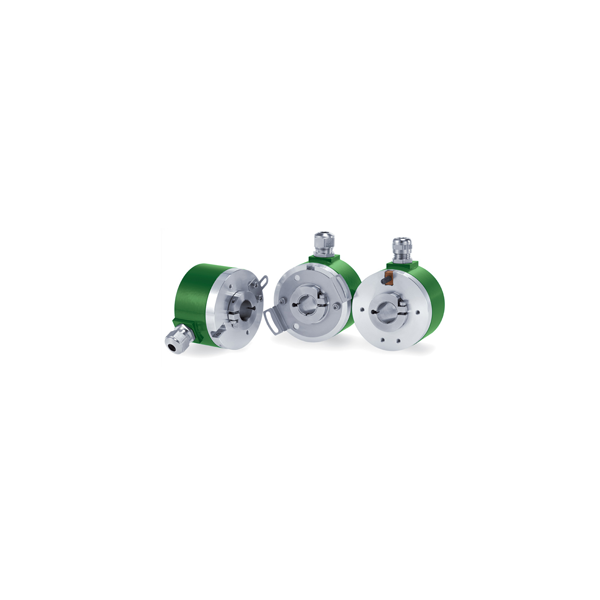

The ENC-CK58/CK59/CK60 series is a blind hollow shaft encoder used for Heavy Industrial Applications. These optical encoders are offered with resolutions ranging from 2 to 10,000 CPR, three mounting options, six output circuitry options, input voltage up to 30VDC, optional index channel, and provide either single-ended, differential, or analog output. These encoders also fit shaft diameters up to 15mm, but reducing sleeves are available for smaller shaft diameters as small as 6mm. With various options to choose from, these encoders can be customized to fit your applications needs. This line of encoders is CE Certified and RoHS Compliant.

*Select a part number from the chart below or build your own part number using the Ordering Information tab at the bottom of the page.

  • Standard Encoder for Heavy Industrial Application
  • Single-Ended or Differential Output
  • 2 to 10,000 Cycles Per Revolution
  • Blind Hollow Shaft up to Ø15mm
  • Optional Index Channel
  • IP64 Standard Protection
  • Output Circuitry
    • NPN Open-Collector
    • PNP Open-Collector
    • Push-Pull
    • Line Driver
    • PP/LD Universal Circuit
    • Analog 1Vpp Sine/Cosine
  • Custom Options Available
    • Custom Cable Lengths
    • IP67 Protection
    • Connection Options

.STEP File (.RAR File)

Spec Sheet (PDF)
