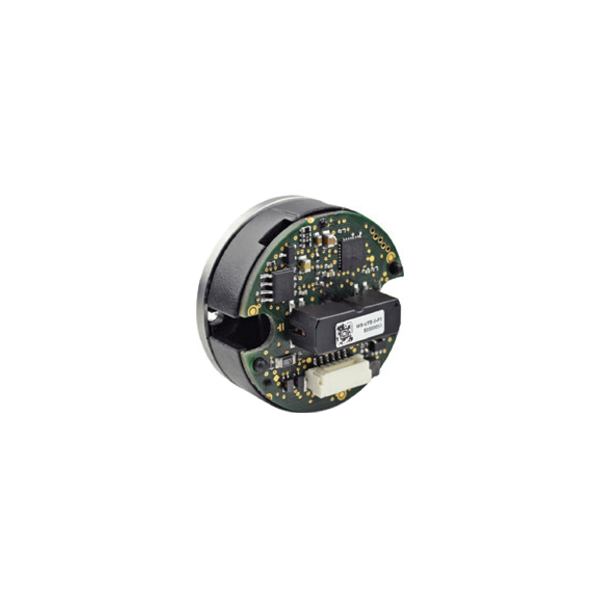

ENC-KCD-BCB-1617-314-F5U-PRQ

The ENC-KCD-BCB Multiturn Absolute Magnetic Kit Encoders are the perfect combination of accuracy, reliability, and cost efficiency. This Multiturn Absolute Magnetic Kit Encoder with BiSS C Interface is for integration to motors, for robots and machinery that use a Kit Encoder for integration to motors, and for robots and machinery. ENC-KCD-BCB Multiturn Absolute Magnetic Kit Encoder is made to easily mount and dismount from an already existing shaft to provide digital feedback information. These Multiturn Kit Encoders have an Electrical Resolution up to 17-Bit for Singleturn. Also, these Multiturn Kit Encoders have Multiturn range of up to 16-Bit Resolution. There are four main components that make the ENC-KCD-BCB: Base (Adapter Plate), Magnet, Printed Circuit Board (PCB), and Housing. The base fits 0.750”, 0.823”, or 1.812” mounting bolt circles. Furthermore, there is no battery and no maintenance.

Note: Each ENC-KCD-BCB kit encoder ships with assembly tools, free of charge.

• Absolute Multiturn and Incremental Interface
• No Battery and No Maintenance
• Energy Harvesting System
• High Shock and Vibration Resistance
• No Ball Bearings
• Compact Design
• Digital Serial Interface: BiSS C
• 37mm Maximum Diameter
• 4.75 - 12.5 VDC
• IP 52 Rating
• Electrical Resolution: Up to 17-Bit Resolution
• Multiturn Range: 16 Bit Resolution
