ENC-M11I-640-0-125-LD-CON-N
| Cycles Per Rev (CPR) | 640 |
|---|---|
| Commutation | 0 Pole |
| Bore Size | .125" |
| Index Channel | Yes |
| Cover | None |
| Electrical | Line Driver |
Interested in large quantity discount?
Product Information

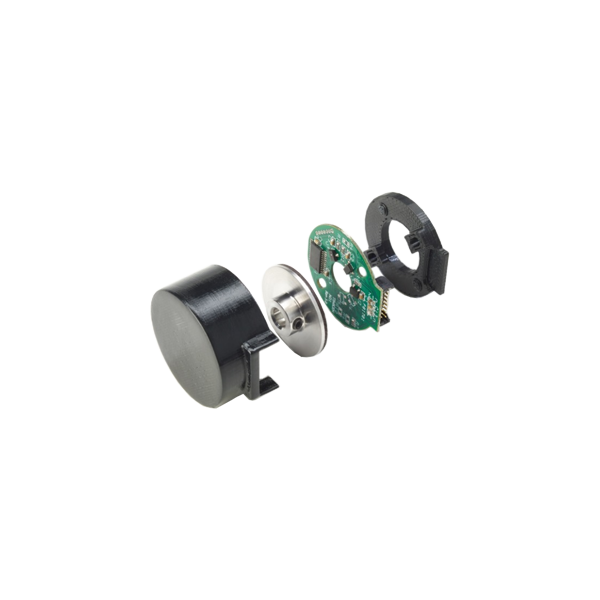

The M11 Miniature Commutating Modular Magnetic Encoder is the smallest off-axis commutating modular magnetic encoder on the market. M11 encoders offer a superior solution to optical encoders with resolutions up to 1024 CPR/12 Bits. With air gap tolerance it makes installation of the hub quick and easy. Also, the M11 does electromagnetic interference (EMI) protection circuitry. The 800KHz combined data rate allows up to 12,000 RPM. The M11 has a 1.1 inch diameter M11 fits NEMA 11 motors and has a temperature capability of 125° C. It is the most accurate magnetic encoder in its class, which makes it ideal for small brushless DC motors and Servo Motors. The magnetic technology provides clear operational advantages over conventional optical encoders in tough, dirty or other extreme environments.
- High accuracy - less than 10 arc minutes
- Compact, low-cost and rugged
- Gap between sensor and target
is highly resistant to liquid or solid - No moving parts
- Customizable as a replacement part
or to fit new designs - 1.1 inch diameter
