ENC-M15HI-1250-0-125-OC-CON-E
| Cycles Per Rev (CPR) | 1250 |
|---|---|
| Commutation | 0 Pole |
| Bore Size | .125" |
| Index Channel | Yes |
| Cover | Cover Extension |
| Electrical | Open Collector |
Interested in large quantity discount?
Product Information

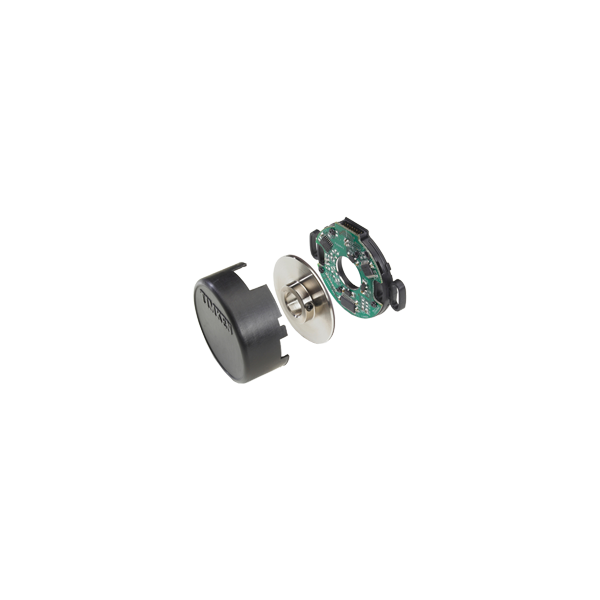

The M15H Modular Differential Encoder with High Resolution offers reliable performance at an economical price. This magnetic encoder fits shaft sizes 0.125" to 0.500" and is available in resolutions 1250-8192 CPR (Cycles per Revolution), with multiple pole commutations and reference pulse options. Patented EMI circuitry provides protection from high-frequency electrical noise and background magnetic fields. This low-profile design is perfect for Stepper Motor positioning and anti-stall feedback, DC brush-type motor positioning, and Brushless DC and Servo Motor control using the commutation options. The M15H comes enclosed in a rugged IP40 package for protection from debris. When the M15H is ordered with Index, a 90° index indicates the width of the index pulse.
*Select a part number from the chart below or build your own part number using the Ordering Information tab at the bottom of the page.
- Third Channel Index
- Operating Temperature of -40° to +125°C
- 1250 to 8192 Cycles Per Revolution (CPR)
- Powered from Single to +5VDC Power Supply
- Allows for ±.010" Axial Shaft Play
- NEMA 23 to 42 Compatible
- 2-Channel Quadrature with Gated Index and Optional Commutation
- RoHS Compliant
